XFlux^® Ultra Material Curves

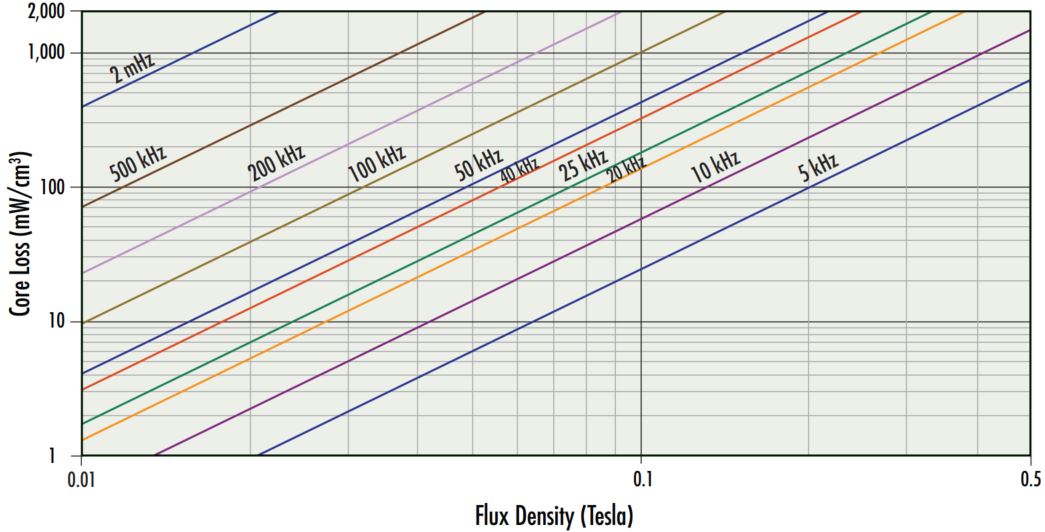

Core Loss Density Curves

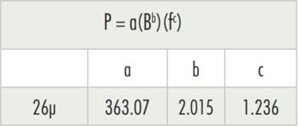

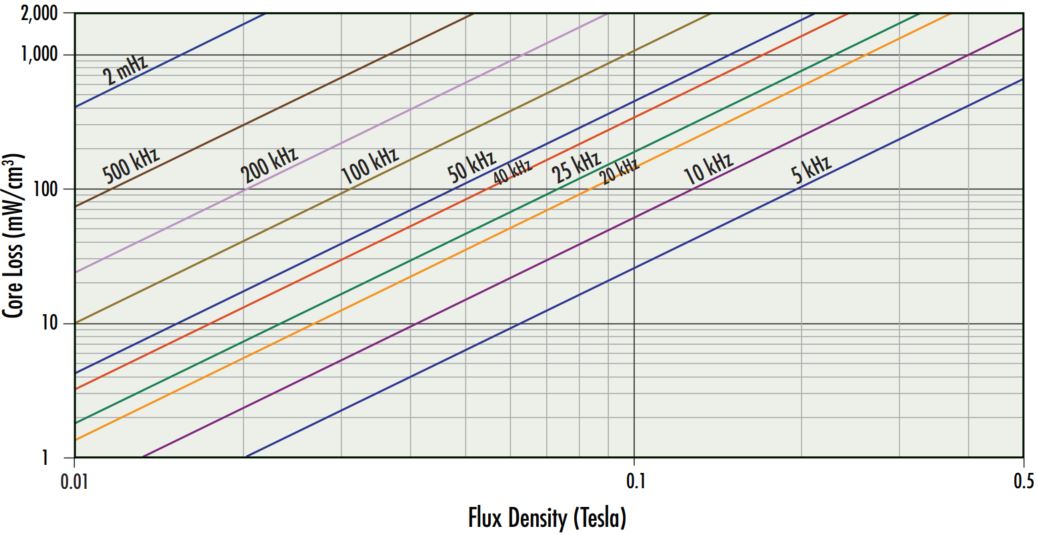

XFlux Ultra 26µ

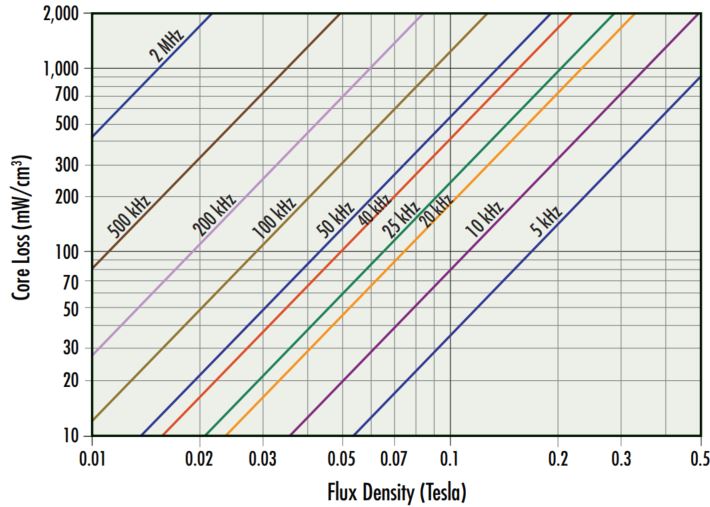

XFlux Ultra 40µ

XFlux Ultra 60µ

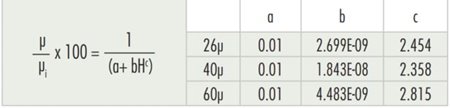

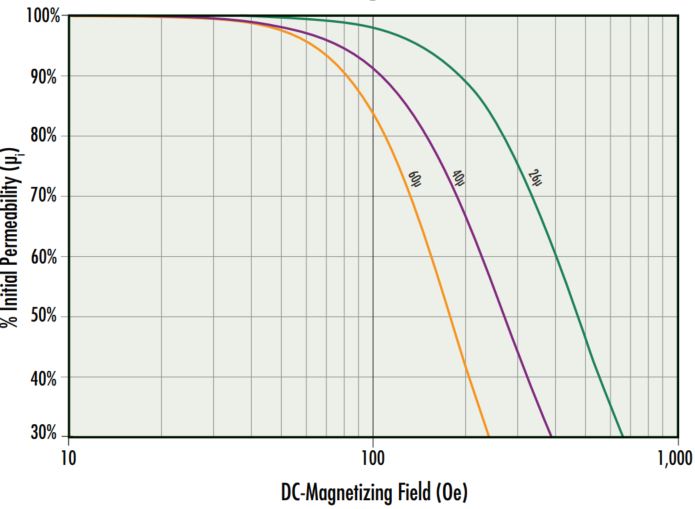

Permeability vs. DC Bias Curves

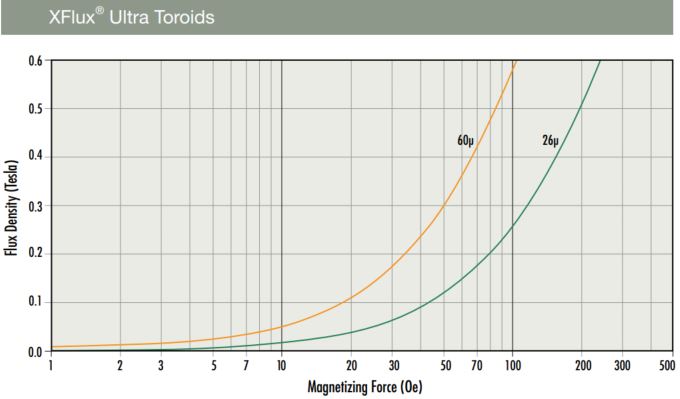

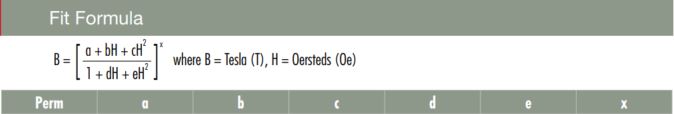

DC Magnetization Curves

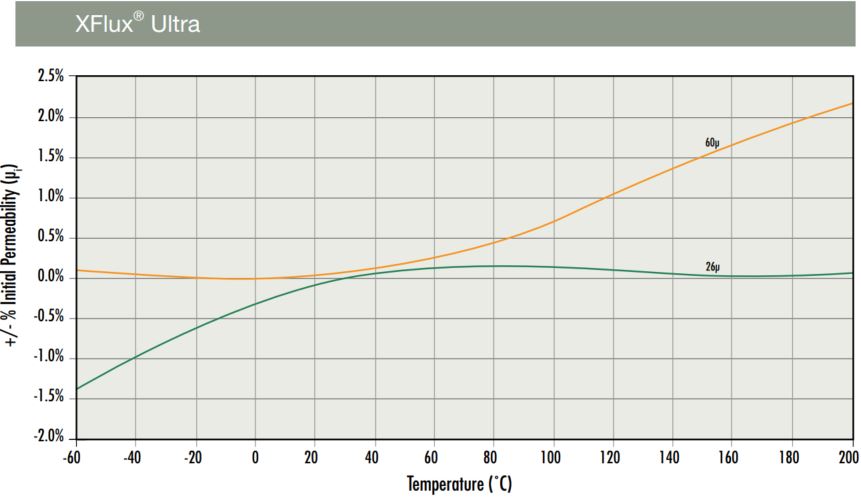

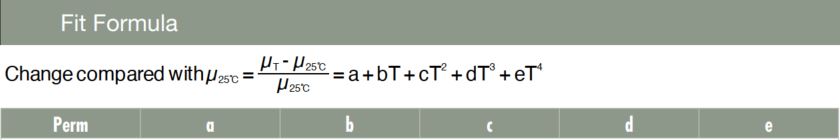

Permeability vs. Temperature

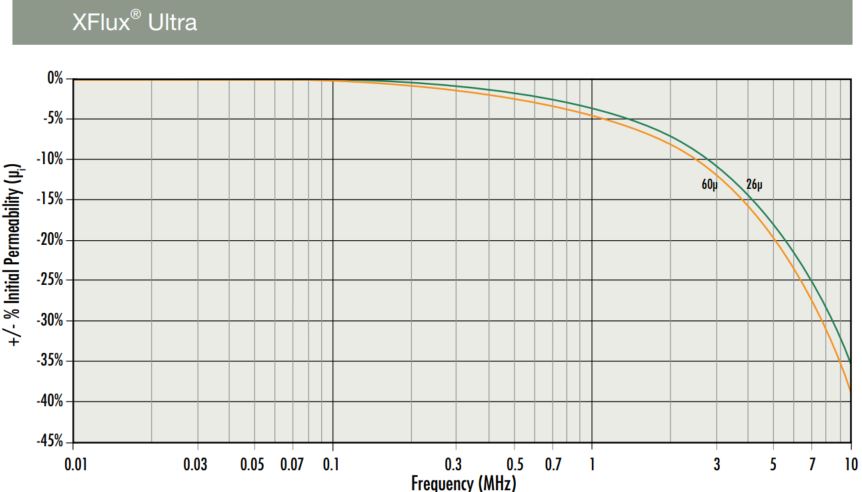

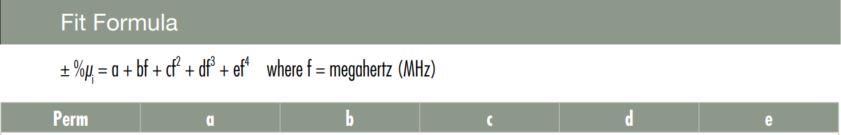

Permeability vs. Frequency

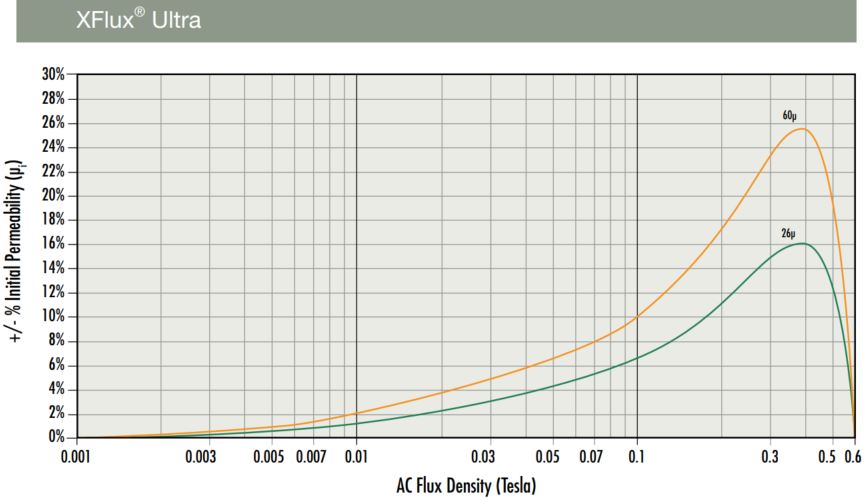

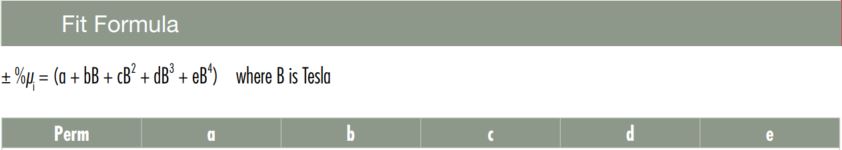

Permeability vs. AC Flux

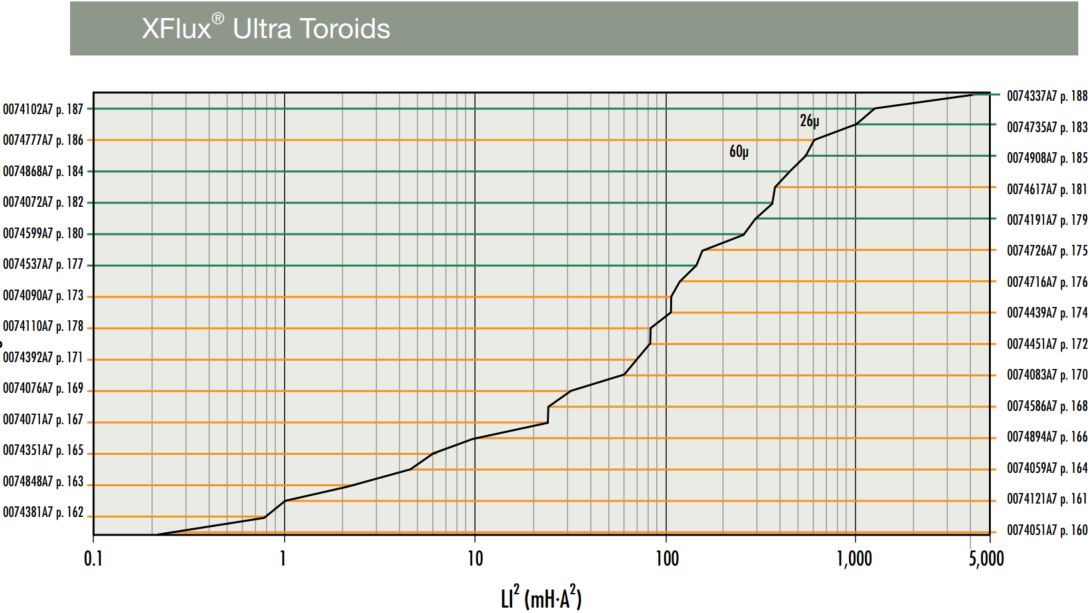

Core Selector Chart
