Edge^® Material Curves

Jump to:

Core Loss Density Curves
Permeability versus DC Bias Curves
DC Magnetization Curves
Permeability versus Temperature Curves
Permeability versus AC Flux Curves
Permeability versus Frequency Curves
Core Selector Chart

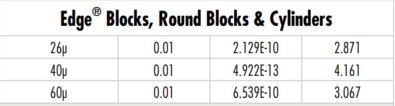

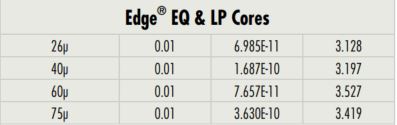

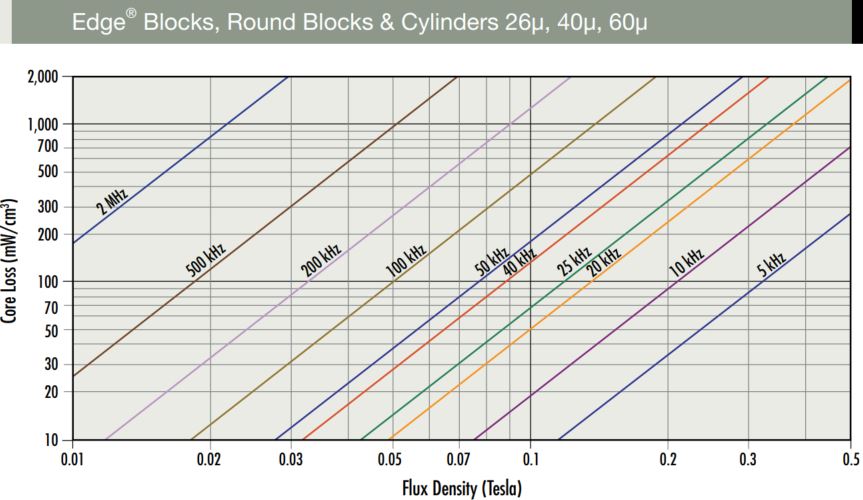

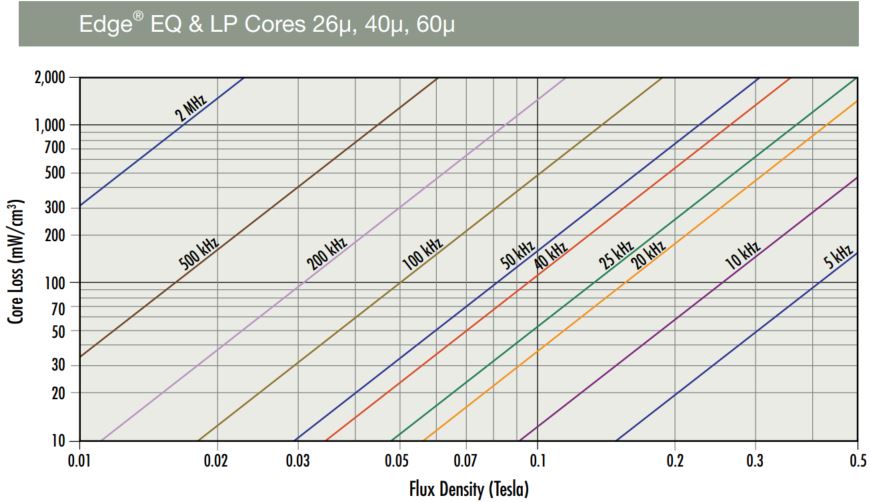

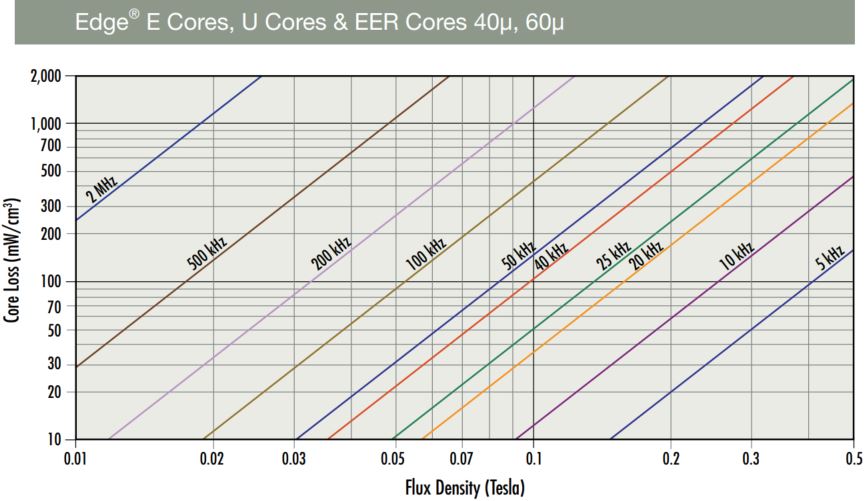

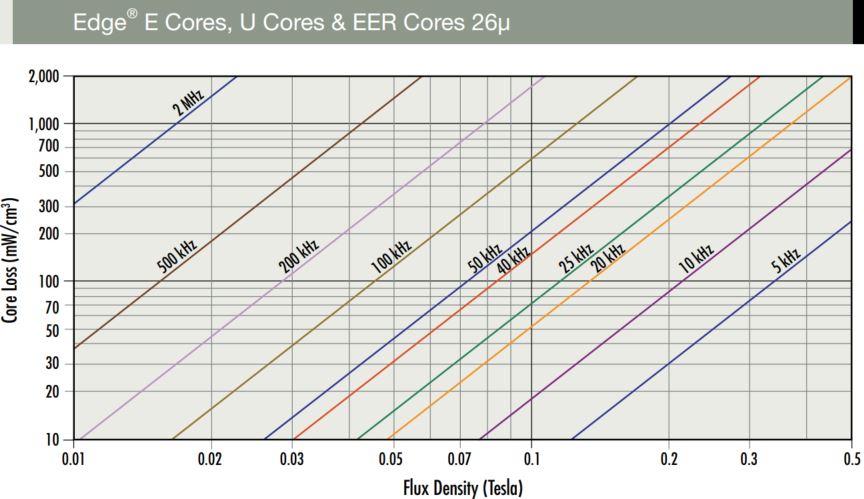

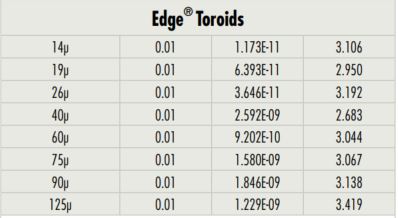

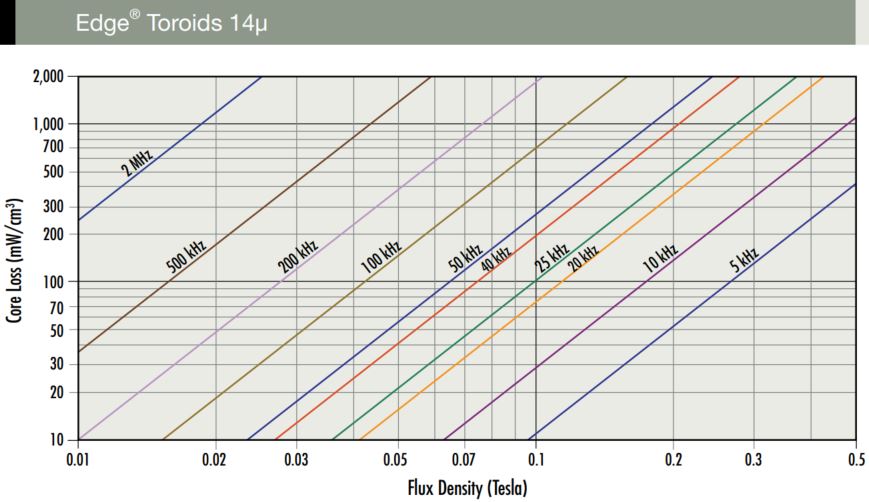

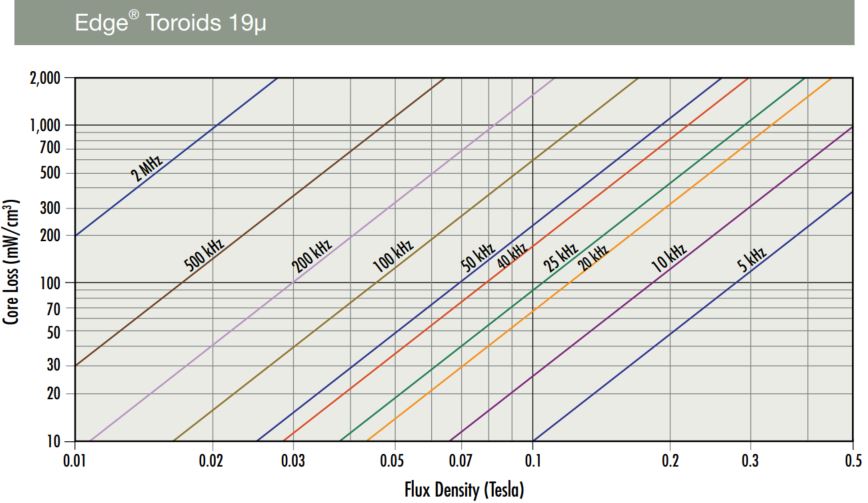

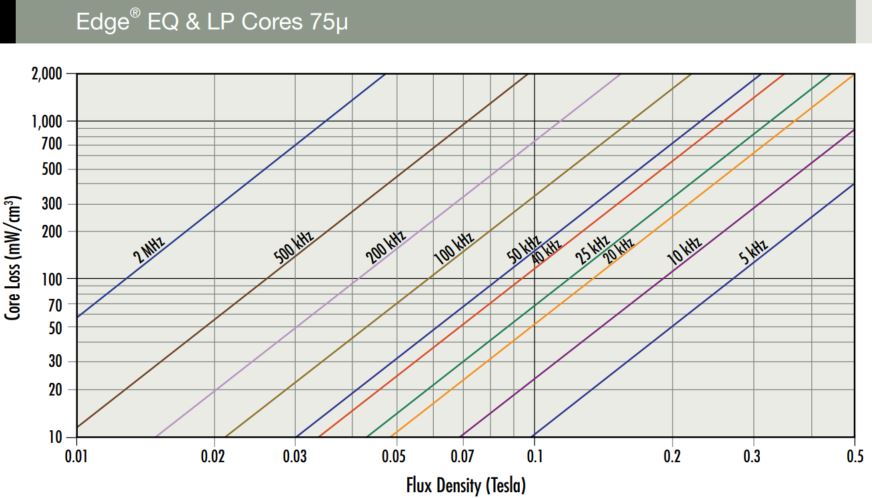

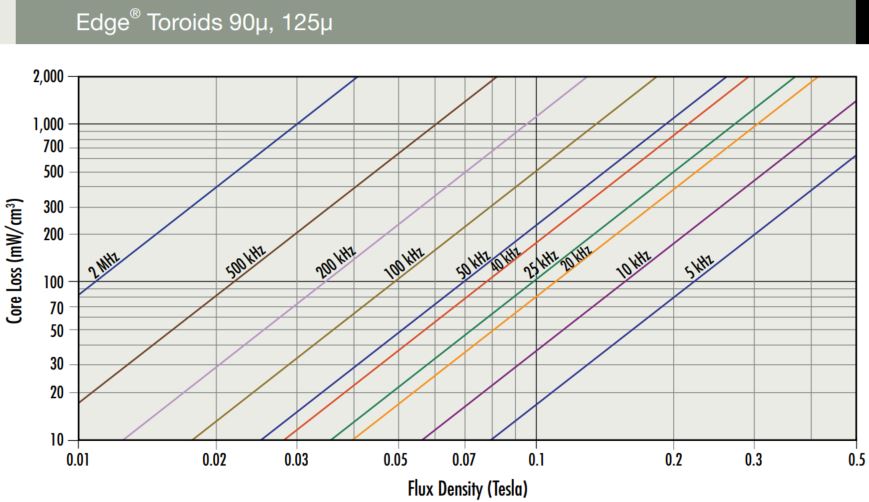

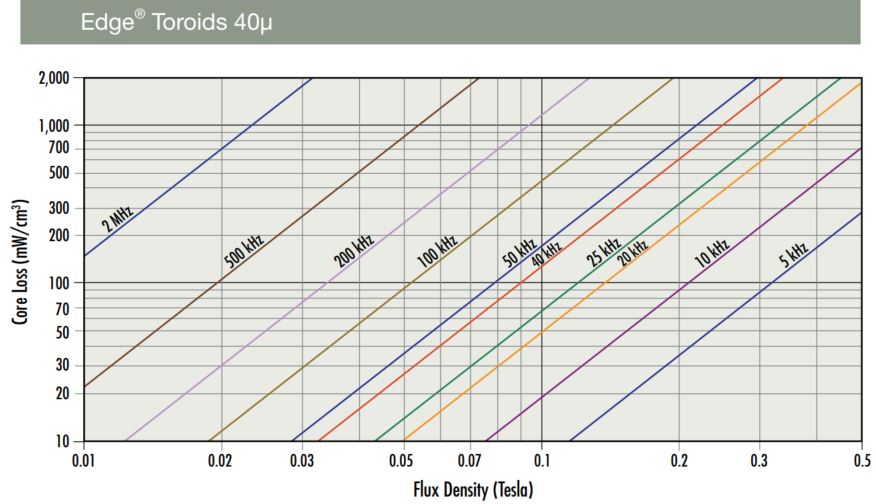

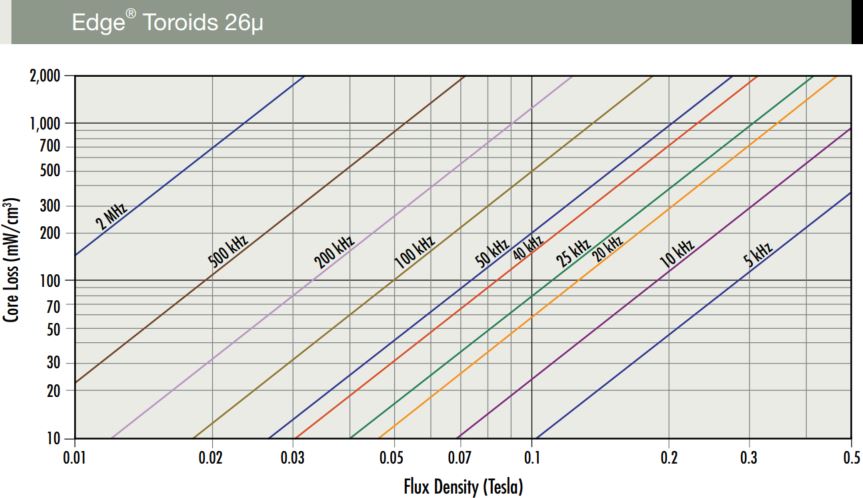

Core Loss Density

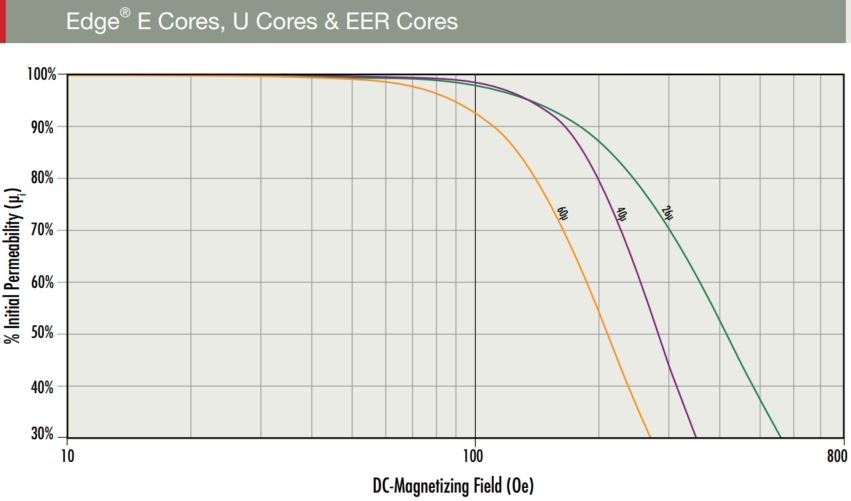

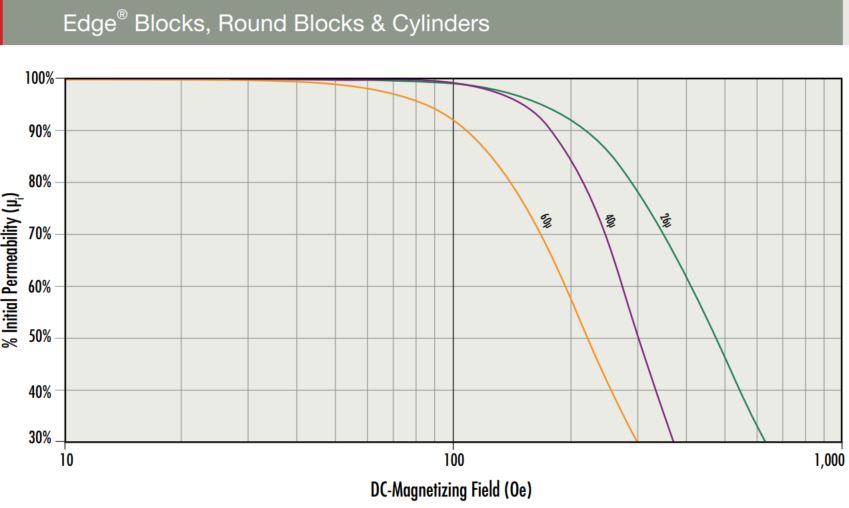

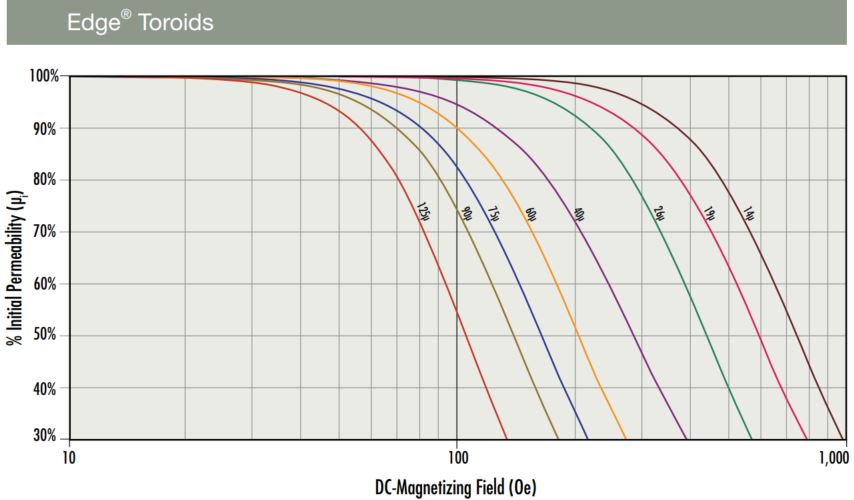

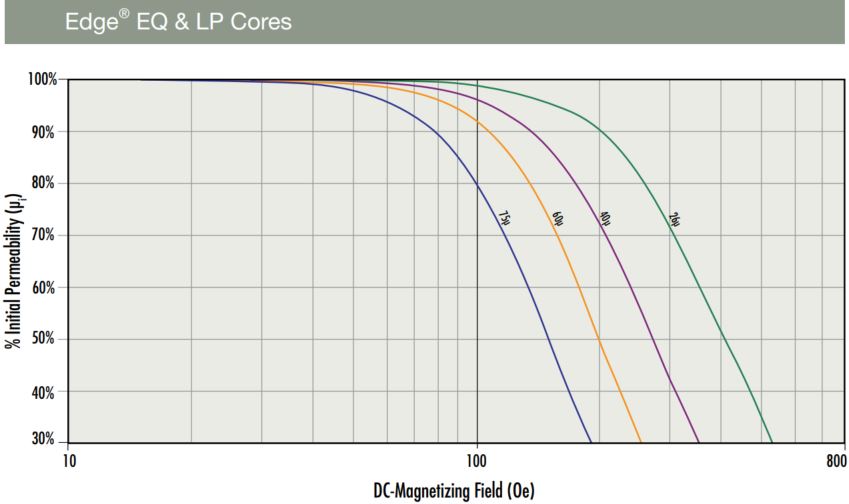

Permeability vs. DC Bias

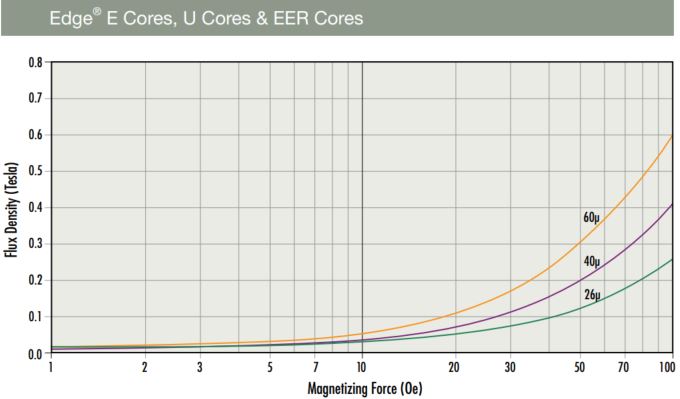

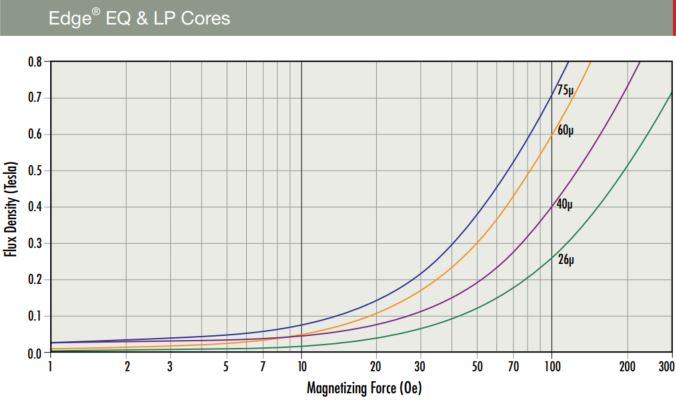

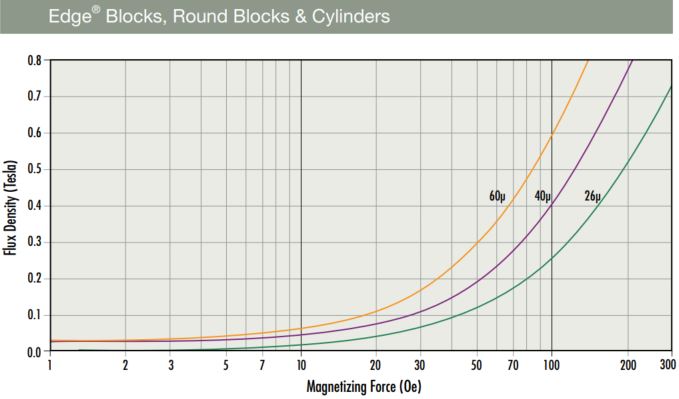

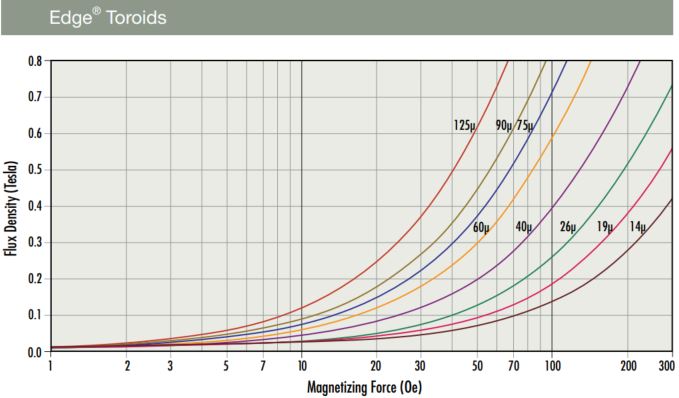

DC Magnetization

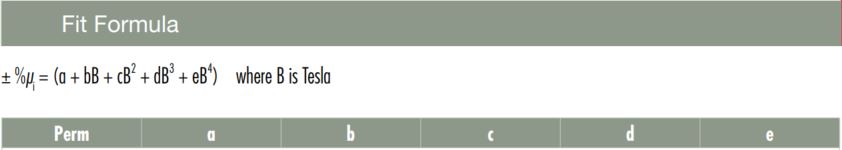

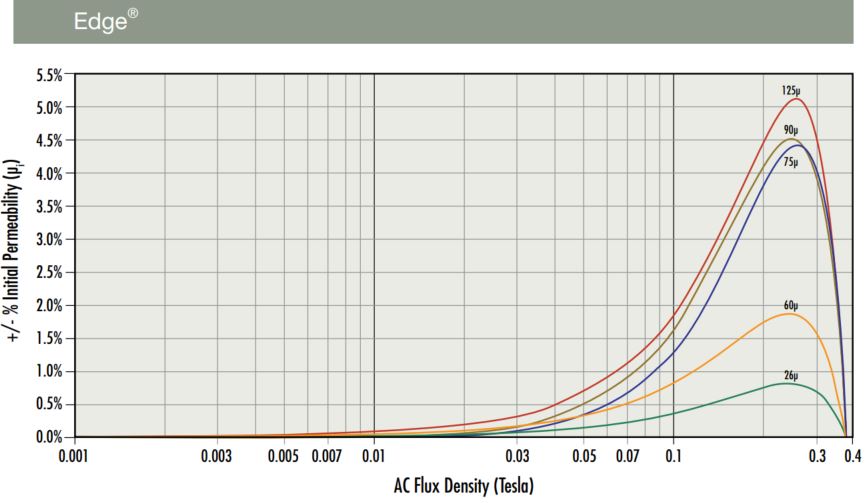

Permeability vs. AC Flux Curves

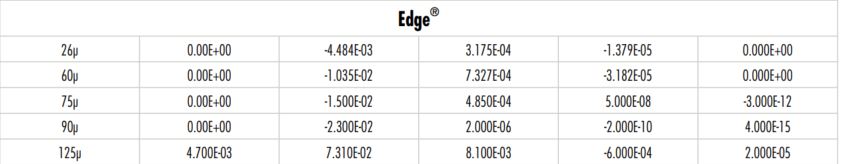

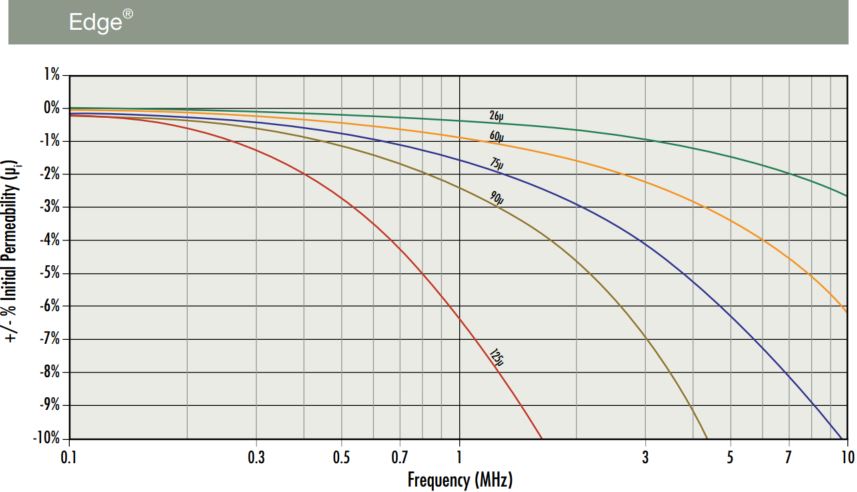

Permeability vs. Frequency Curves

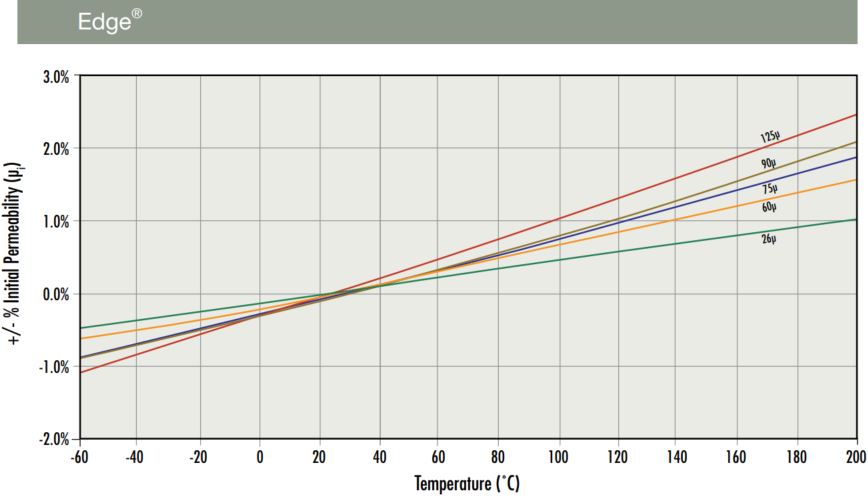

Permeability vs. Temperature Curves

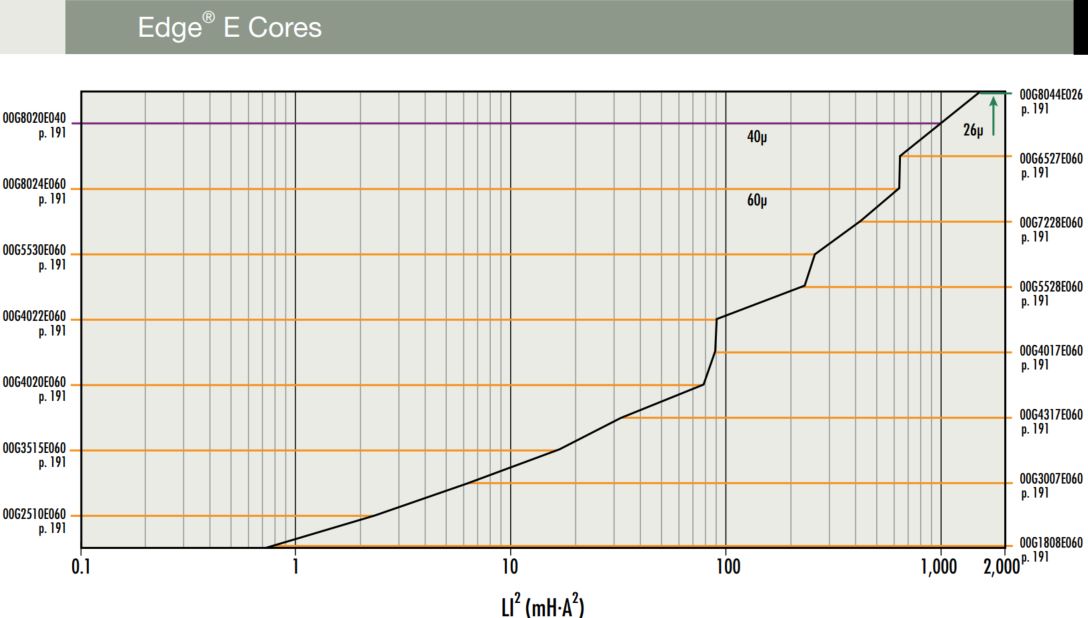

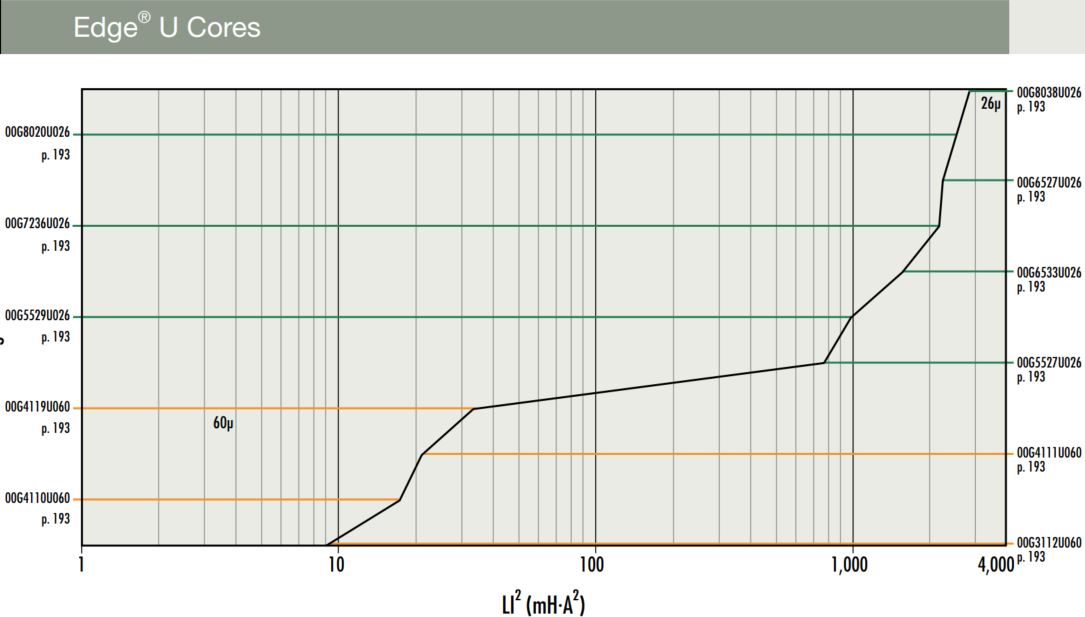

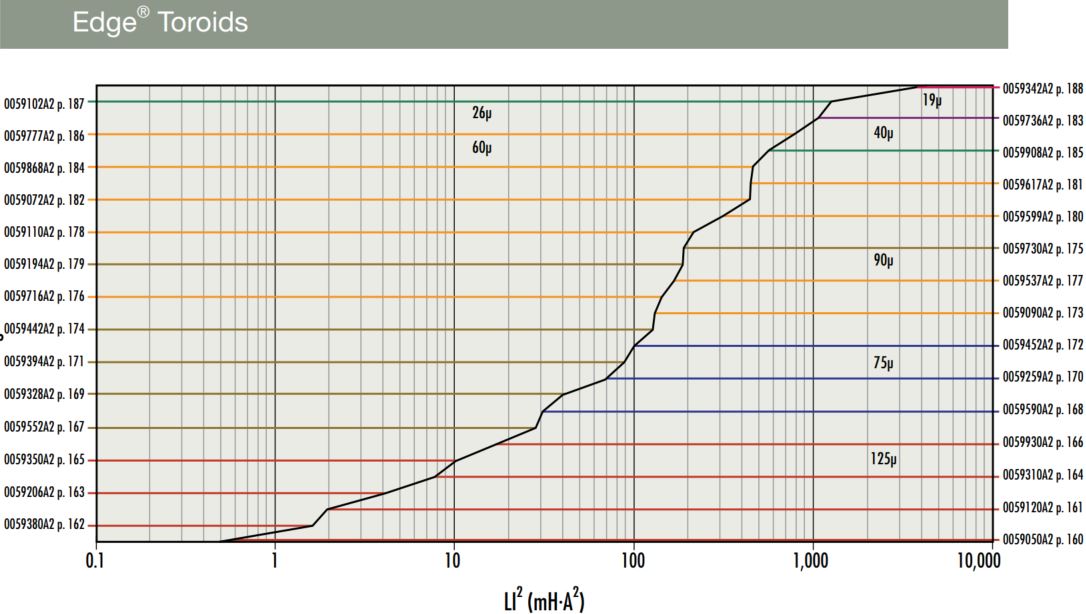

Core Selector
