XFlux^® Material Curves

Jump to:

Core Loss Density Curves
Permeability versus DC Bias Curves
DC Magnetization Curves
Permeability versus Temperature Curves
Permeability versus AC Flux Curves
Permeability versus Frequency Curves
Core Selection Chart

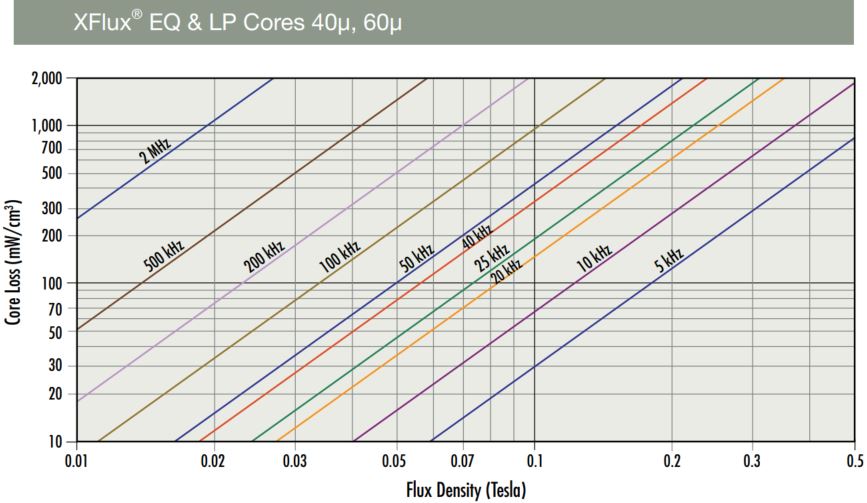

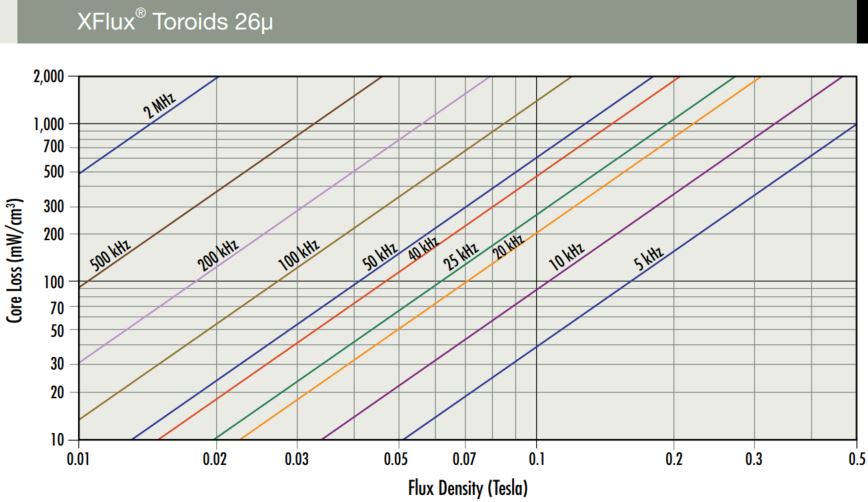

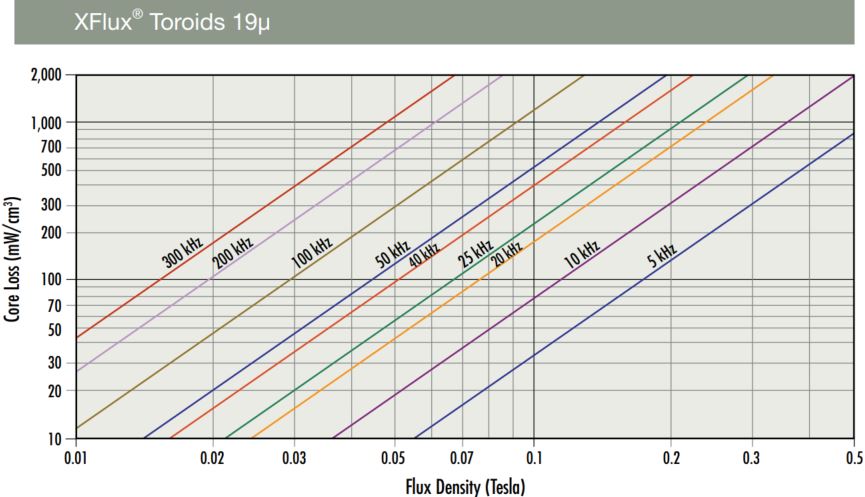

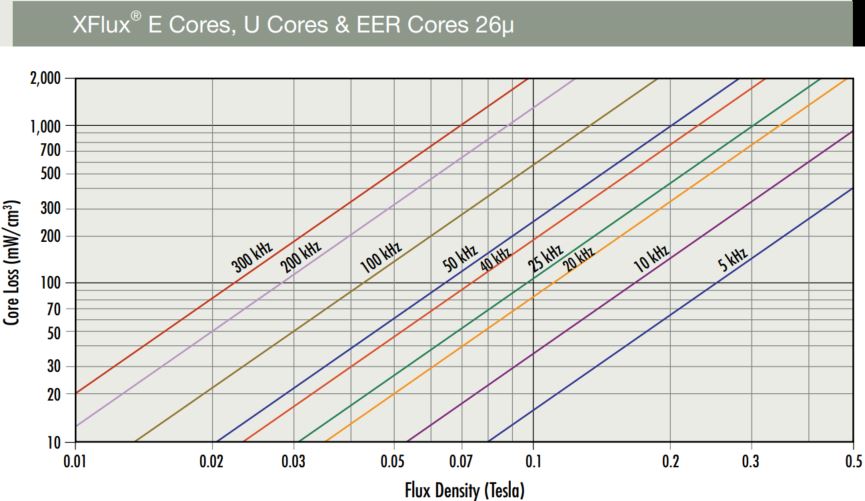

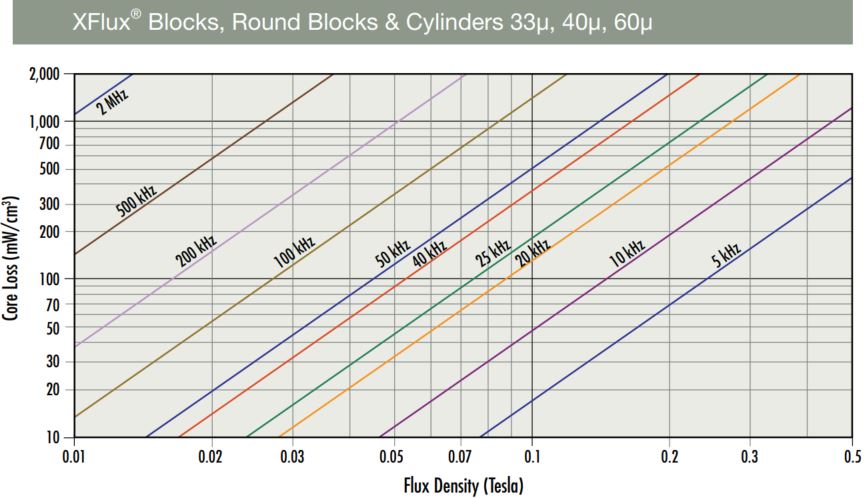

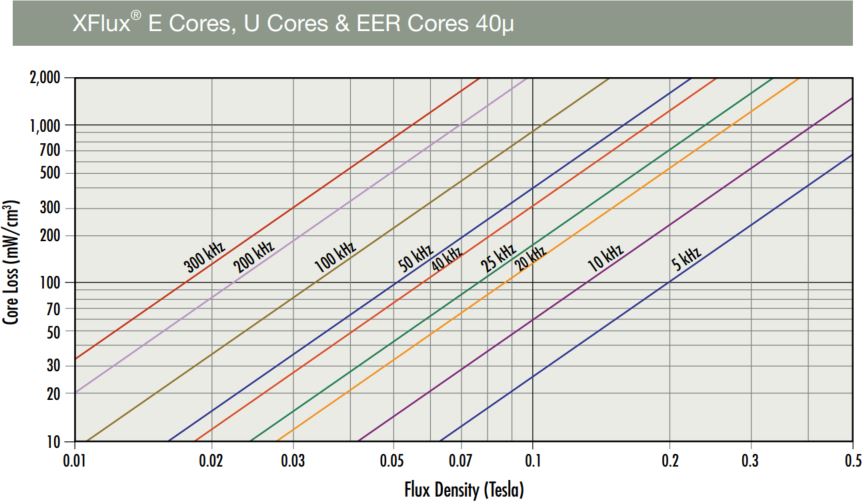

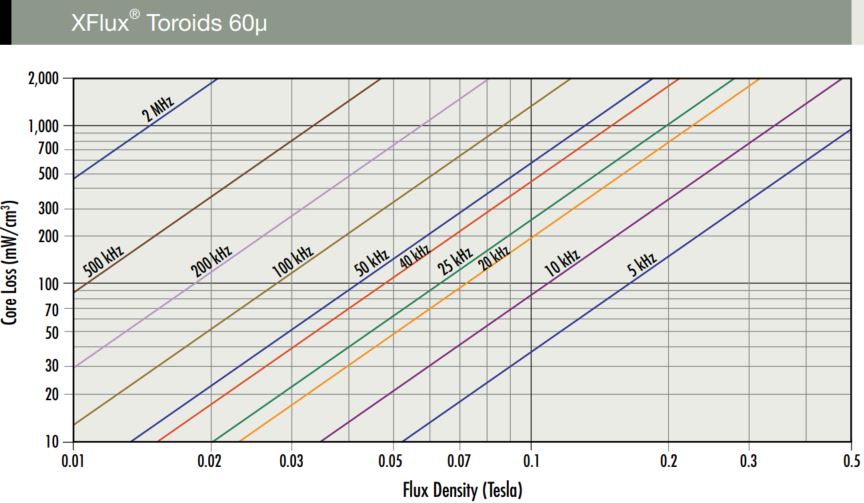

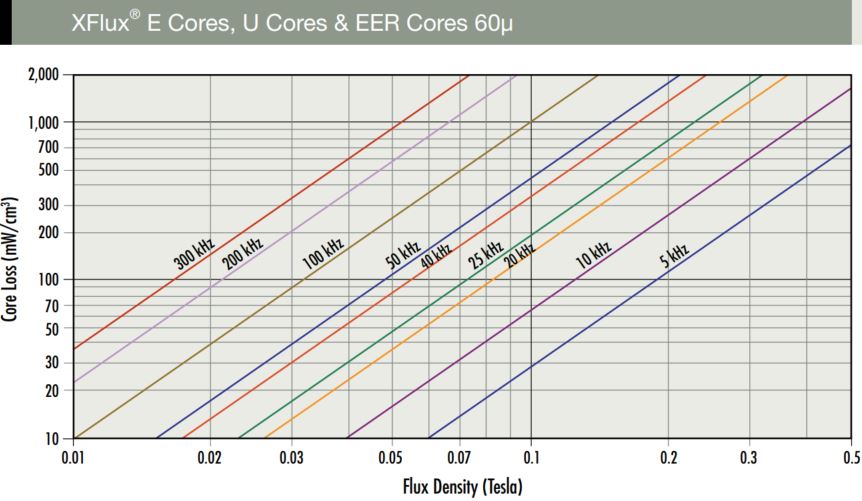

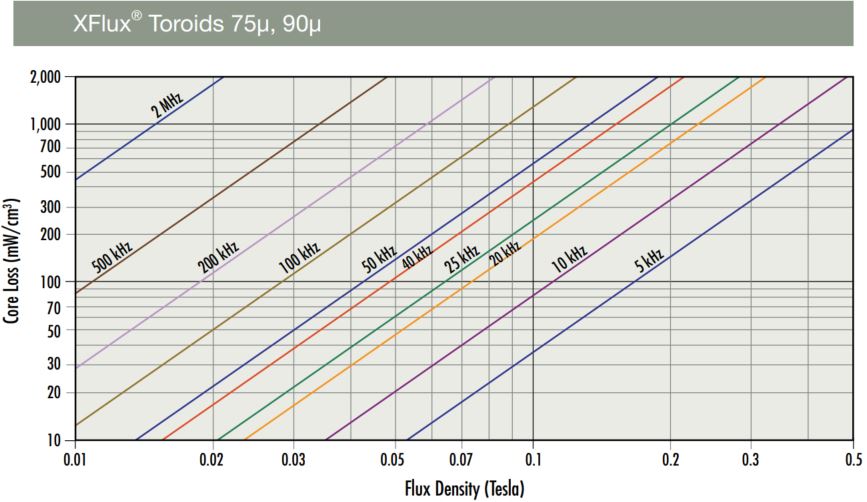

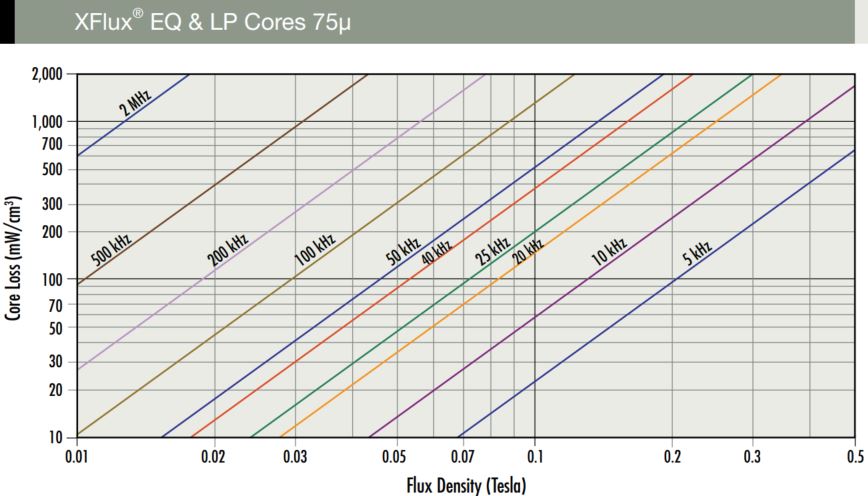

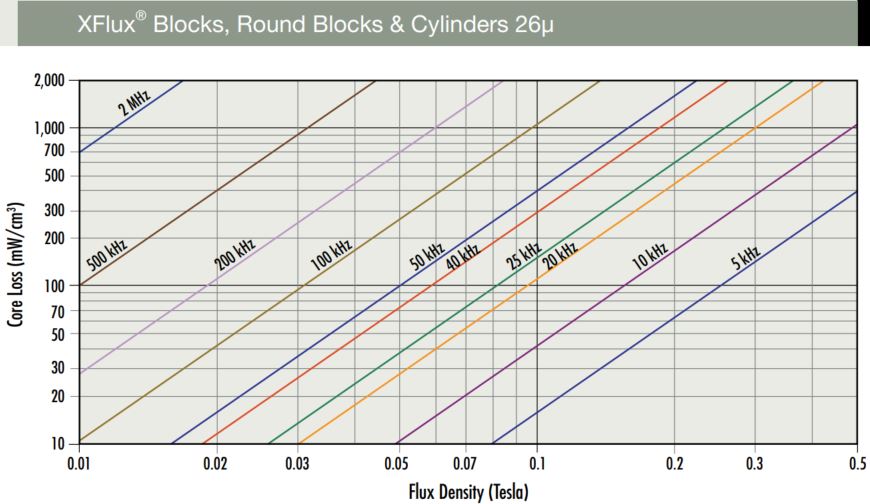

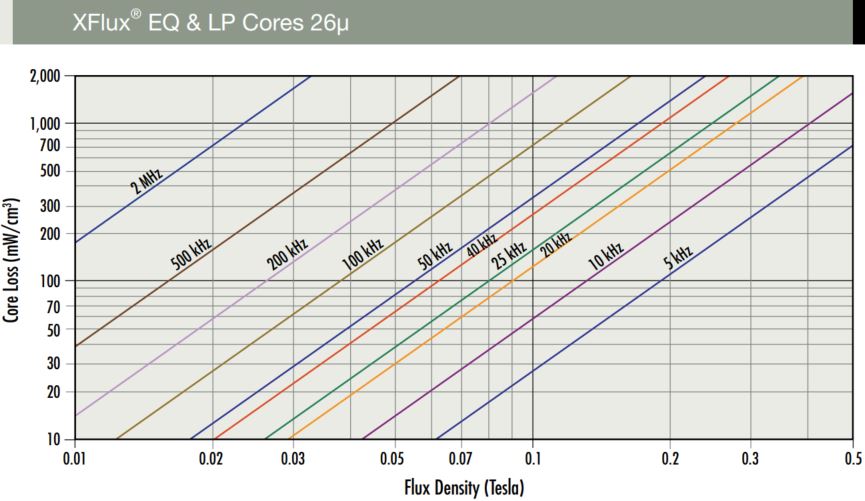

Core Loss Density Curves

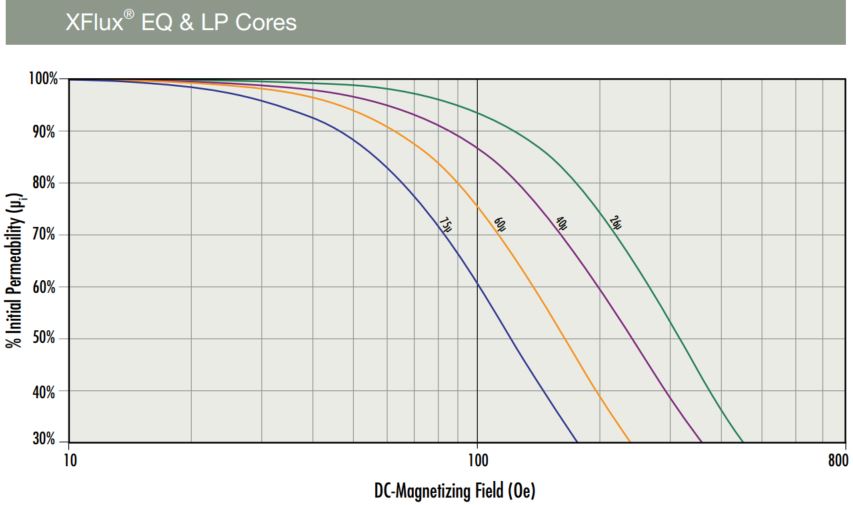

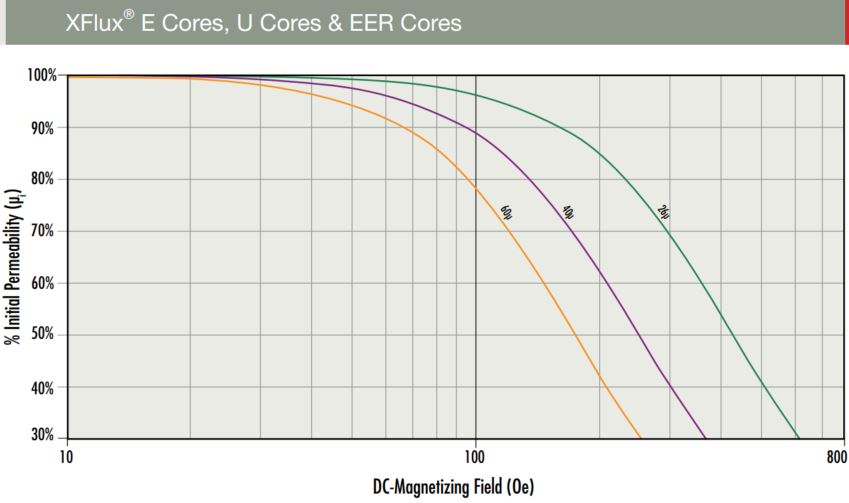

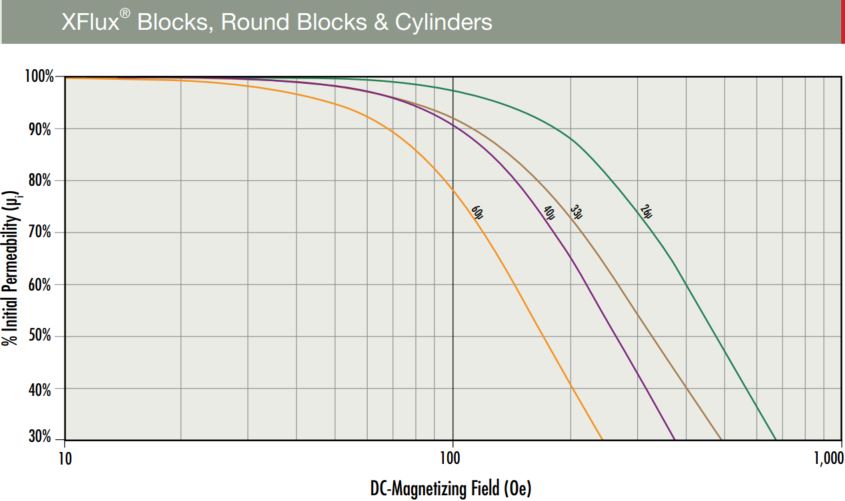

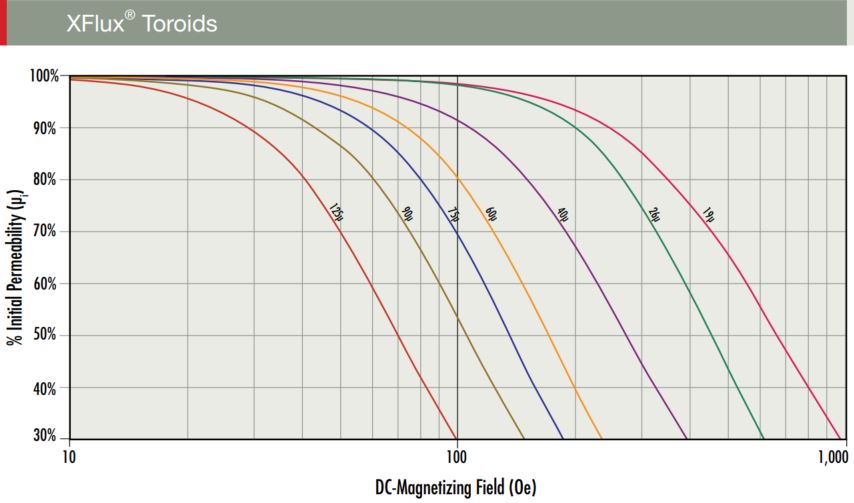

Permeability vs. DC Bias Curves

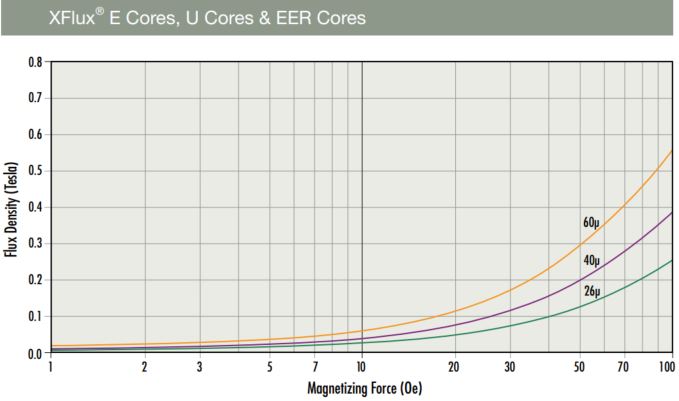

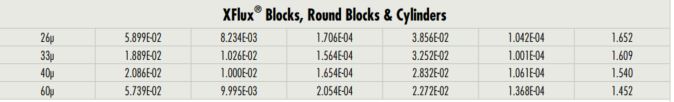

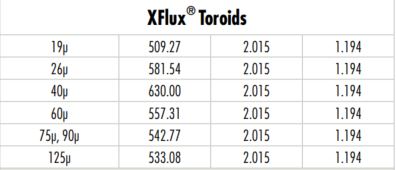

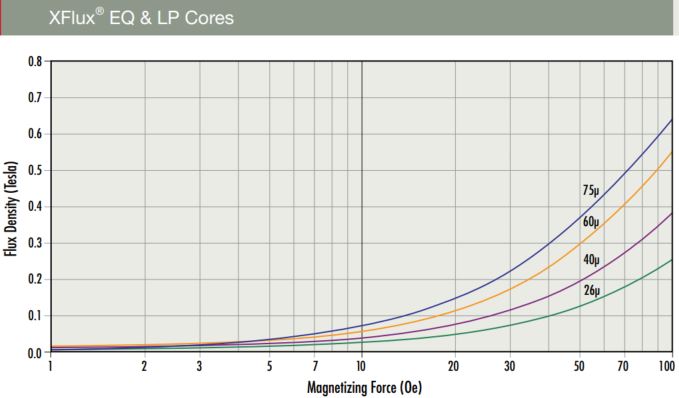

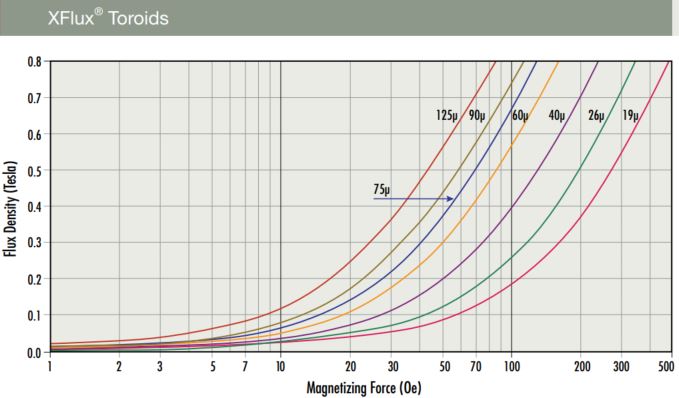

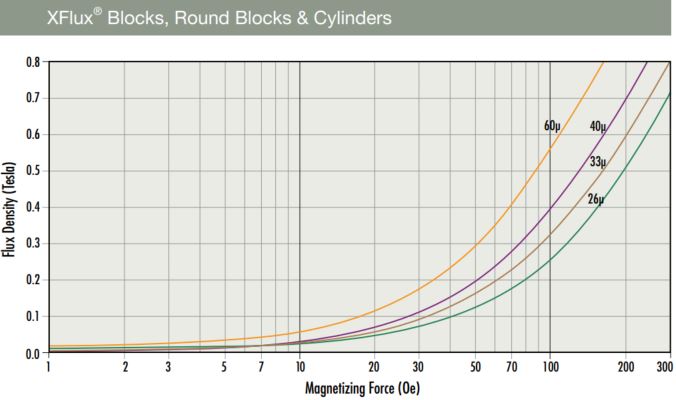

DC Magnetization Curves

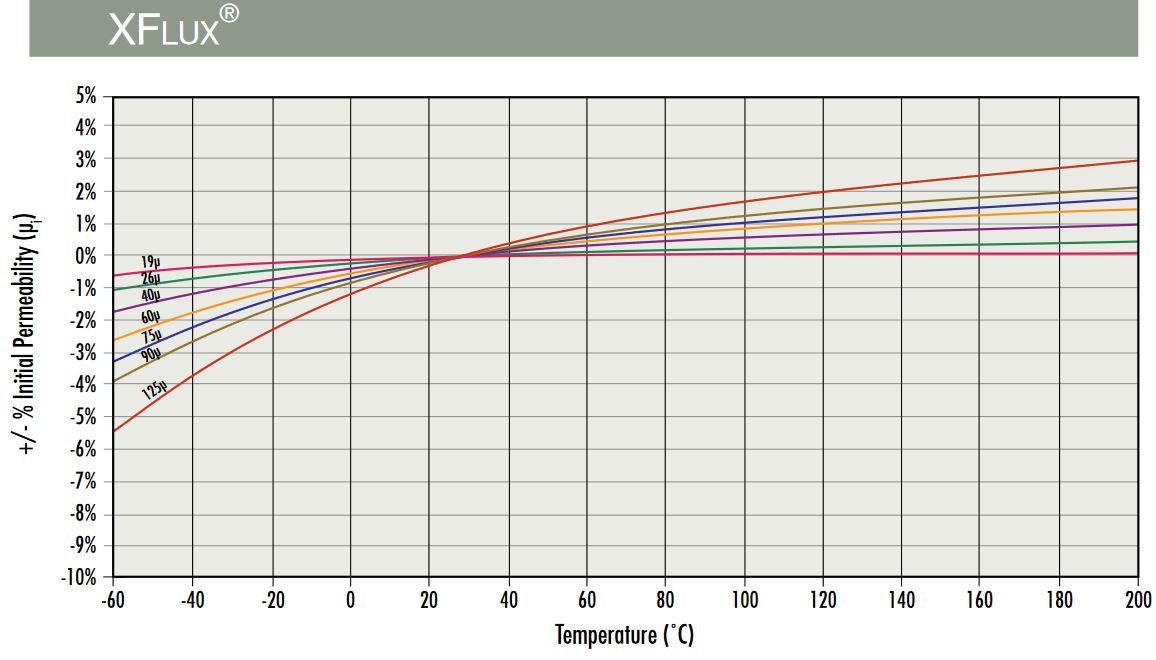

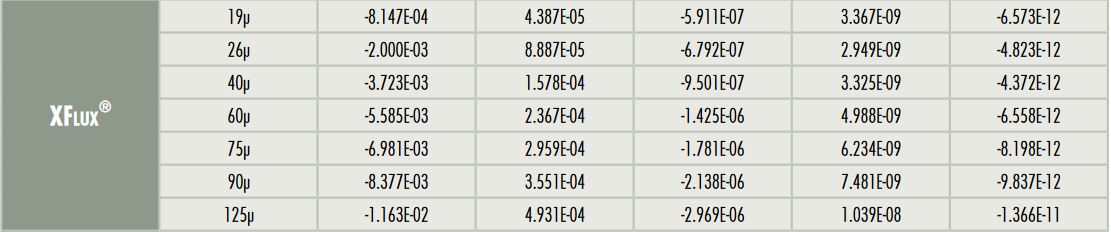

Permeability vs. Temperature Curves

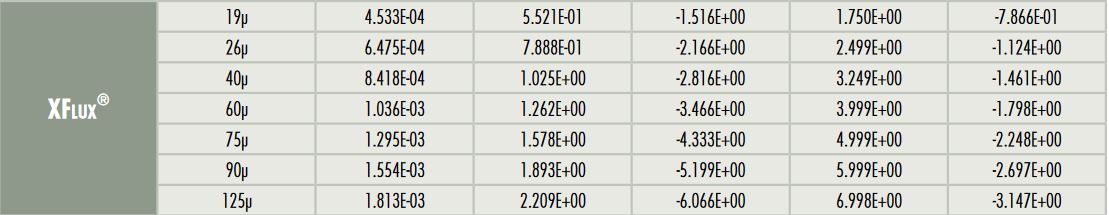

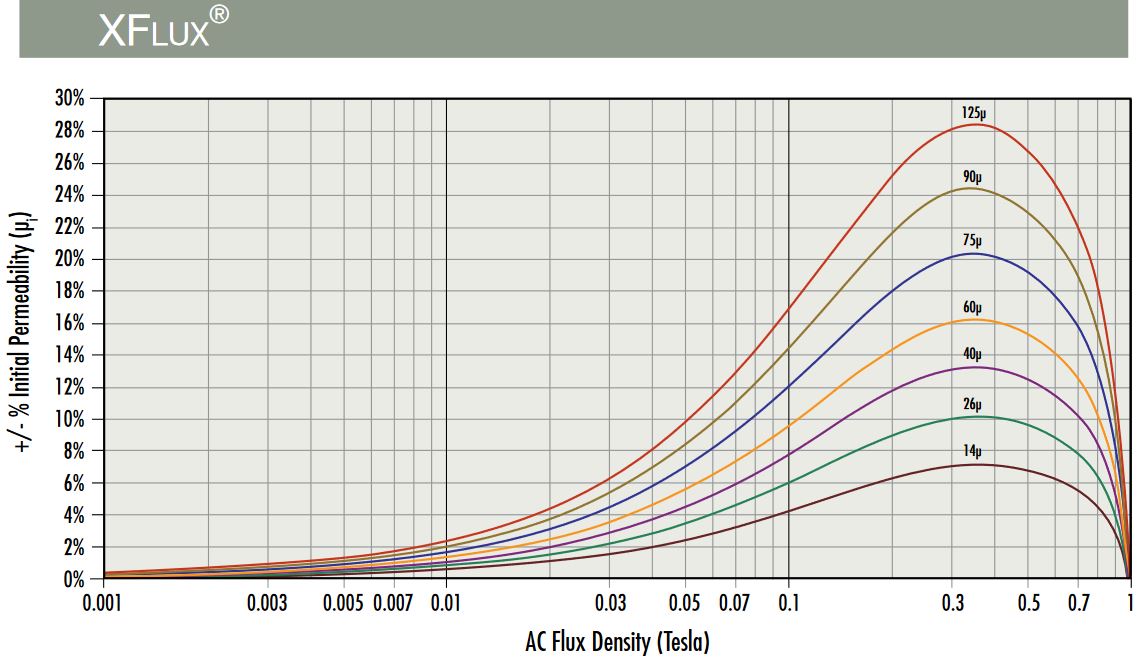

Permeability vs. AC Flux Curves

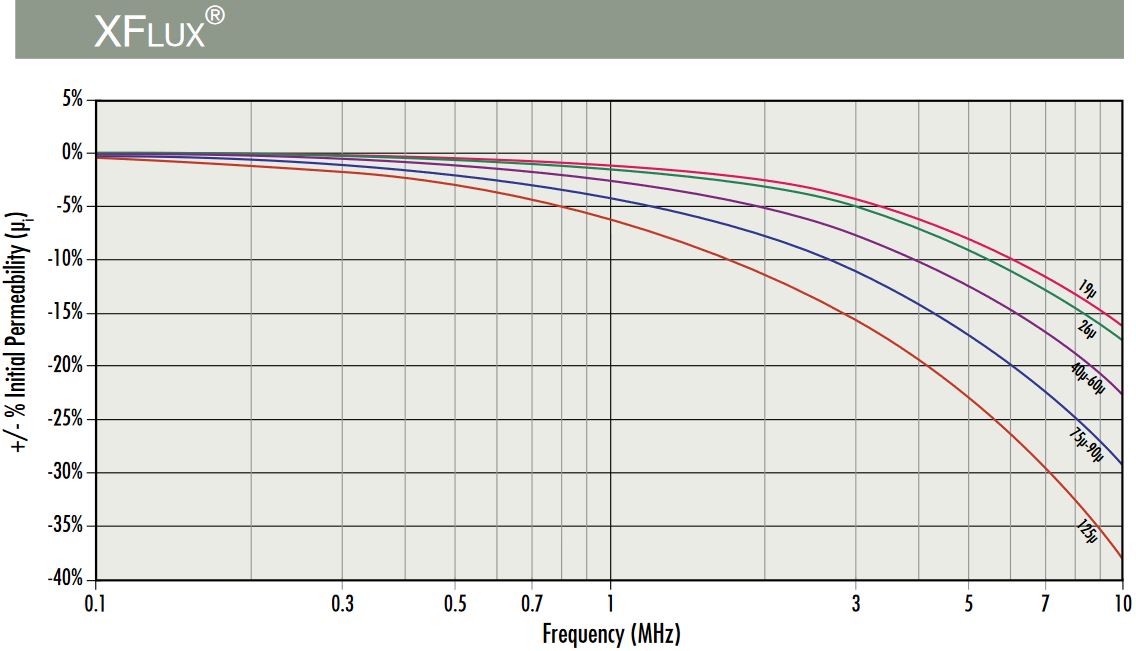

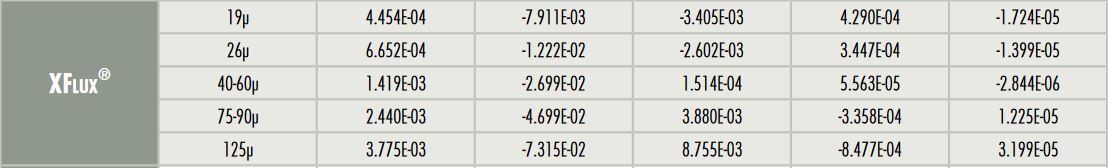

Permeability vs. Frequency Curves

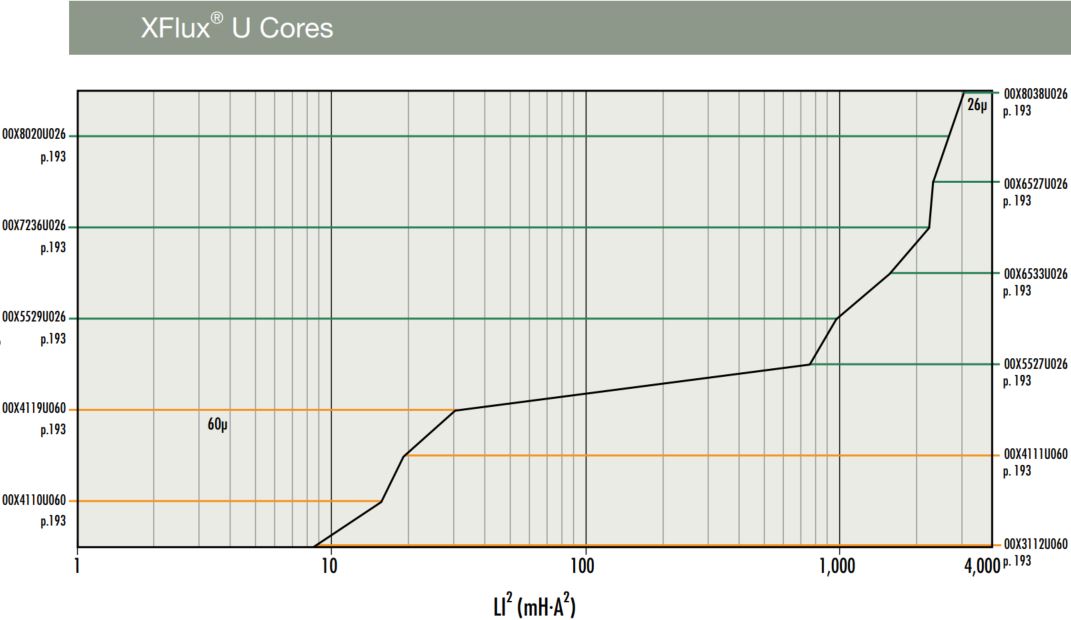

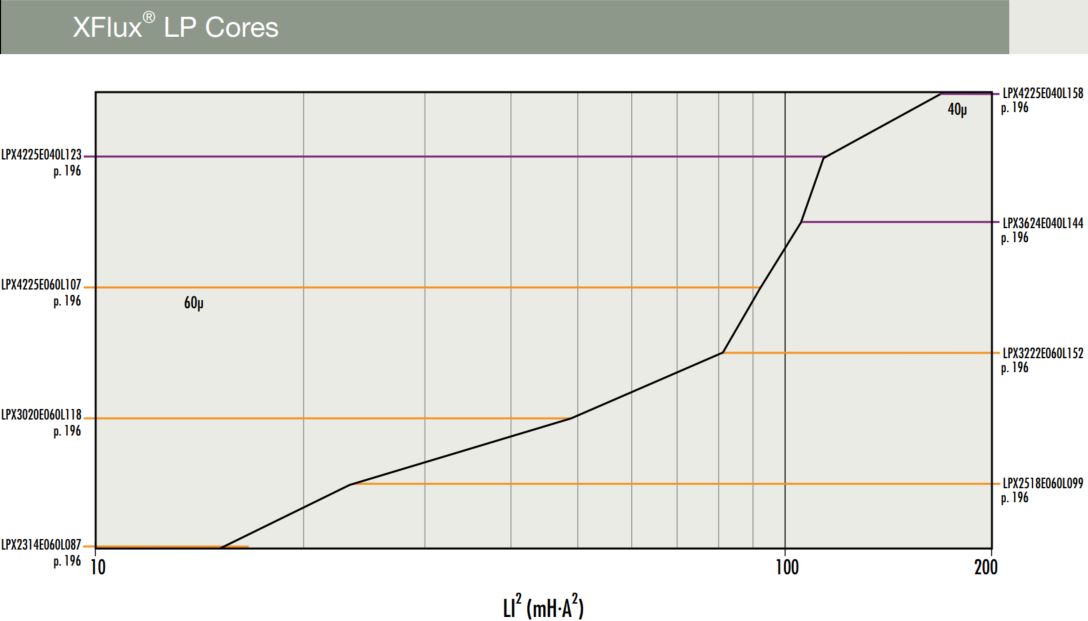

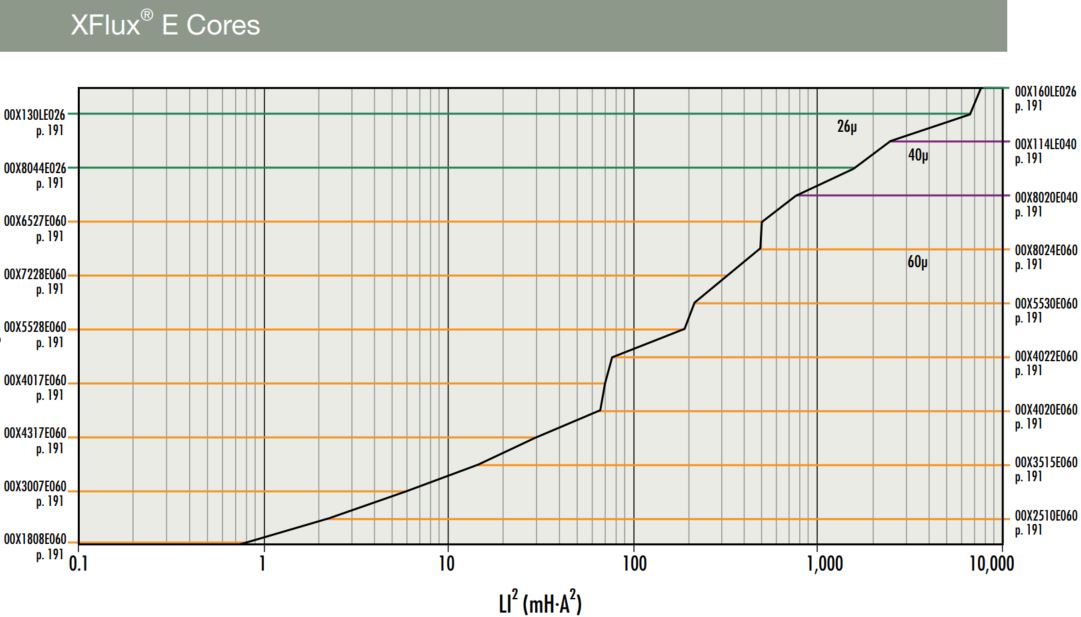

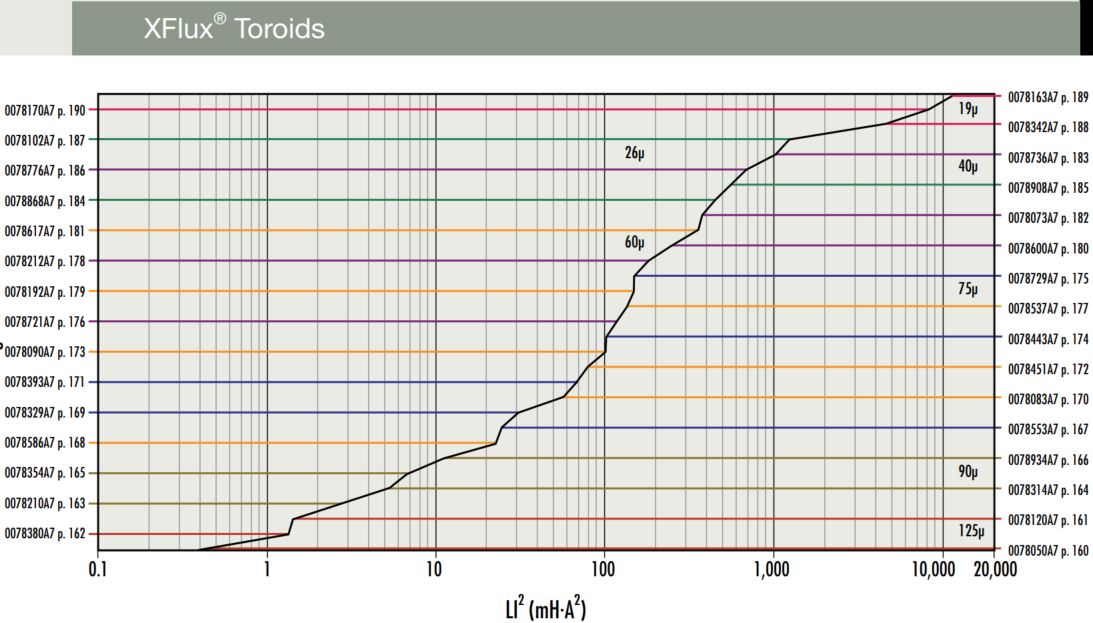

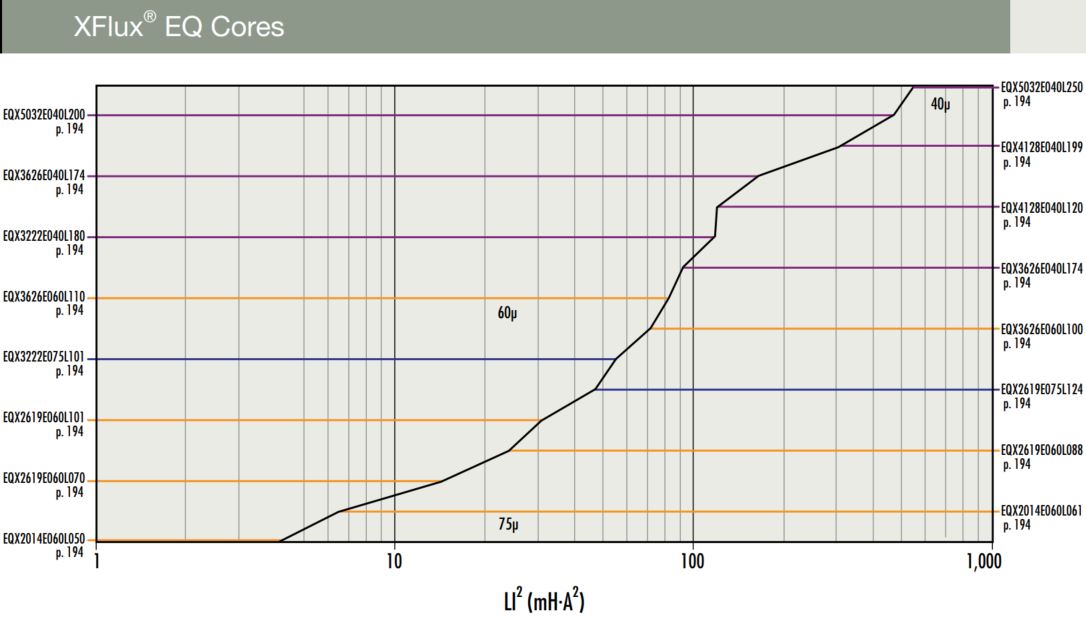

Core Selection Charts
