Kool Mµ^® Hƒ Material Curves

Jump to:

• Core Loss Density Curves
• DC Magnetization Curves
• Permeability versus DC Bias Curves
• Permeability versus AC Flux Curves
• Permeability versus Frequency Curves
• Permeability versus Temperature Curves
• Core Selection Charts

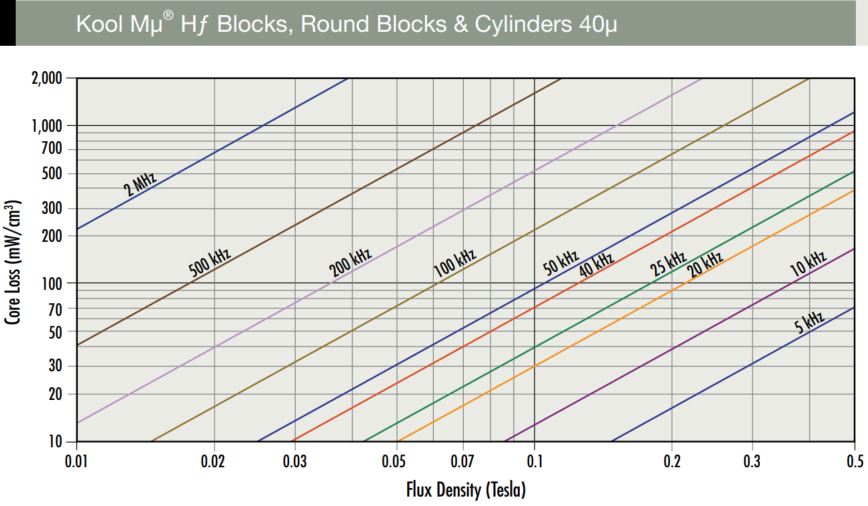

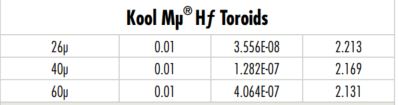

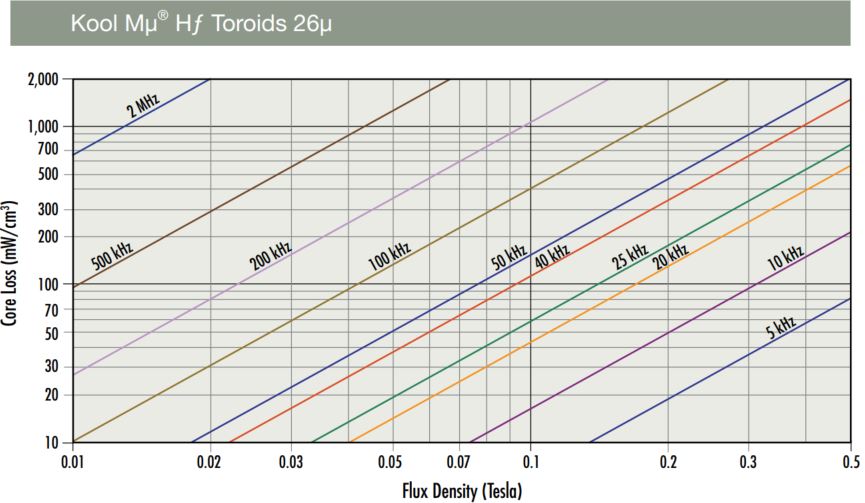

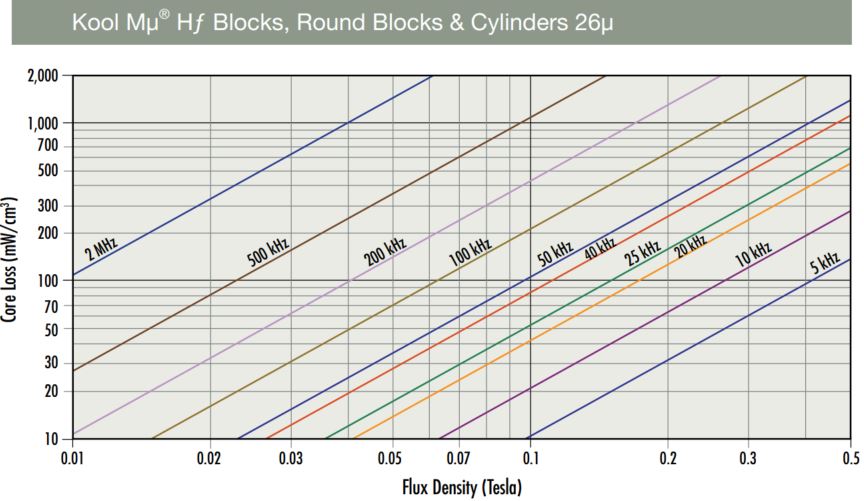

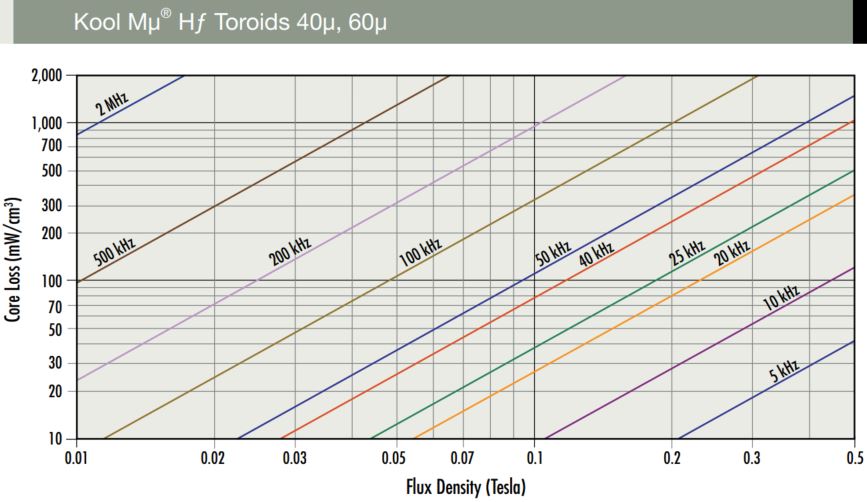

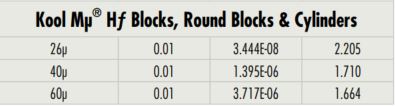

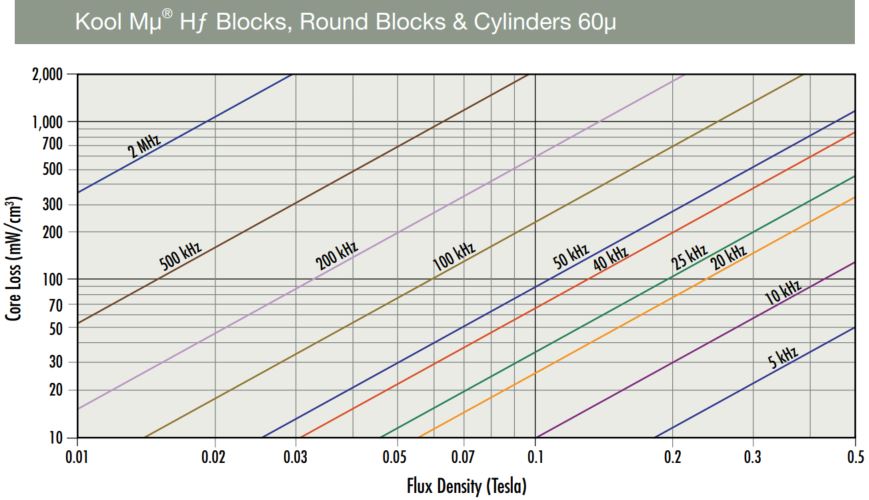

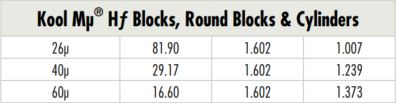

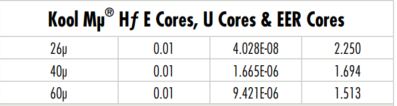

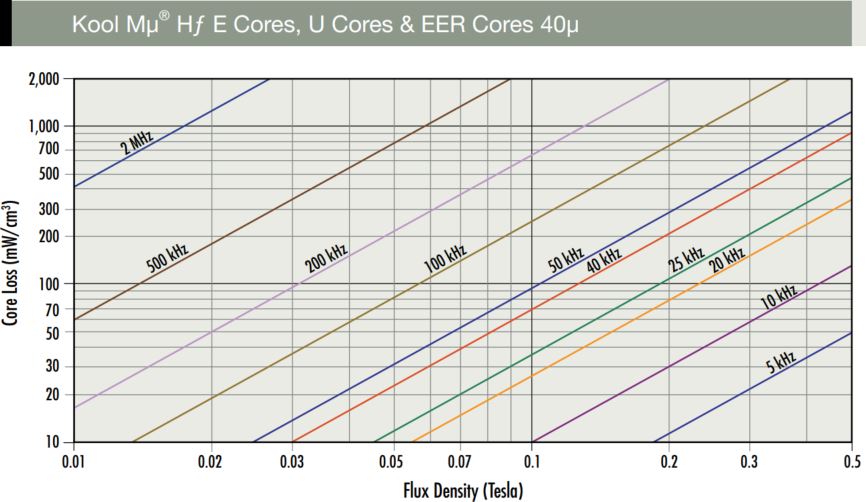

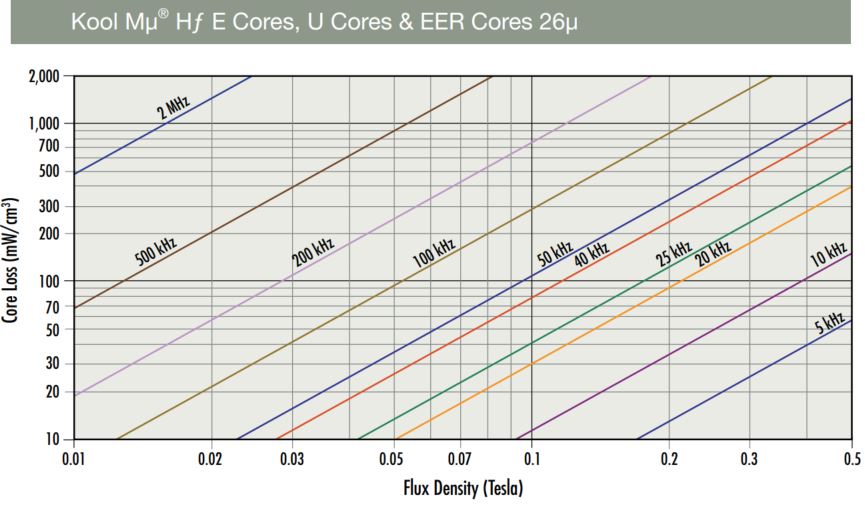

Core Loss Density Curves

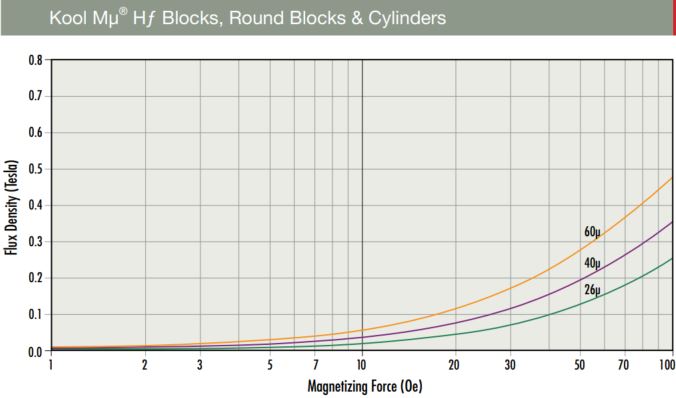

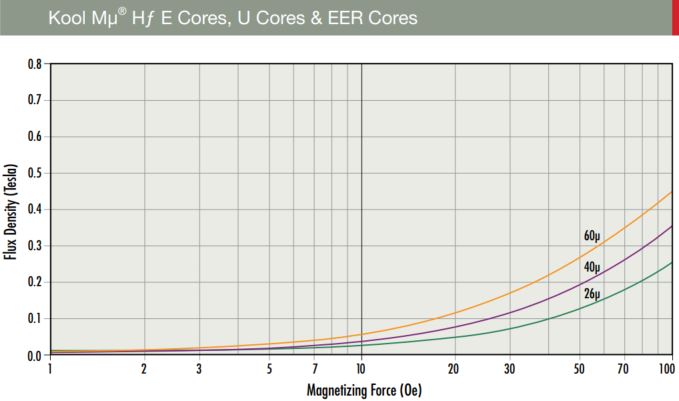

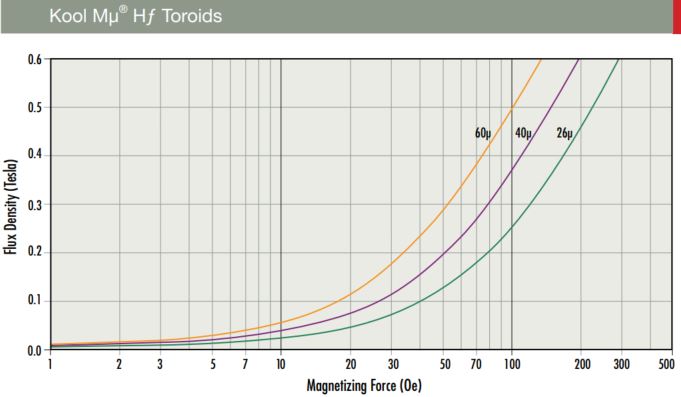

DC Magnetization Curves

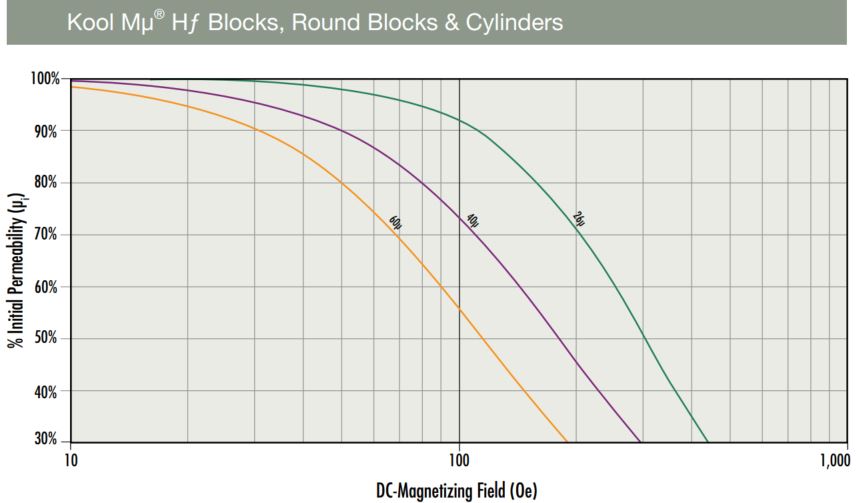

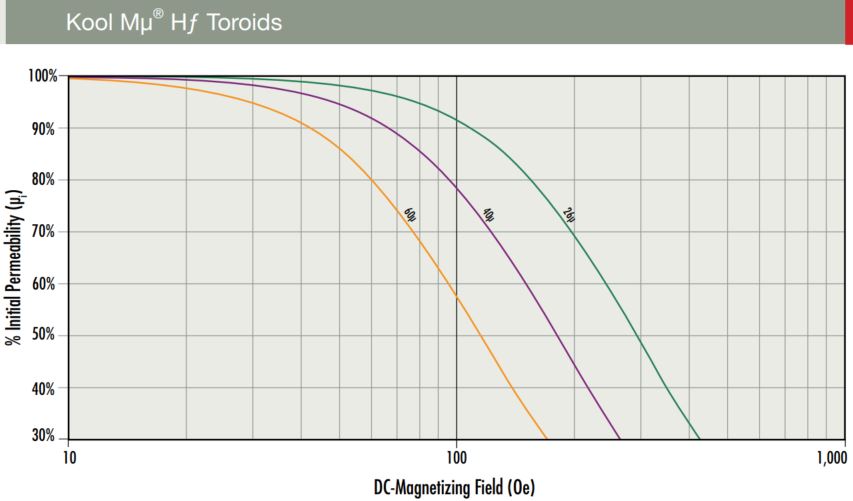

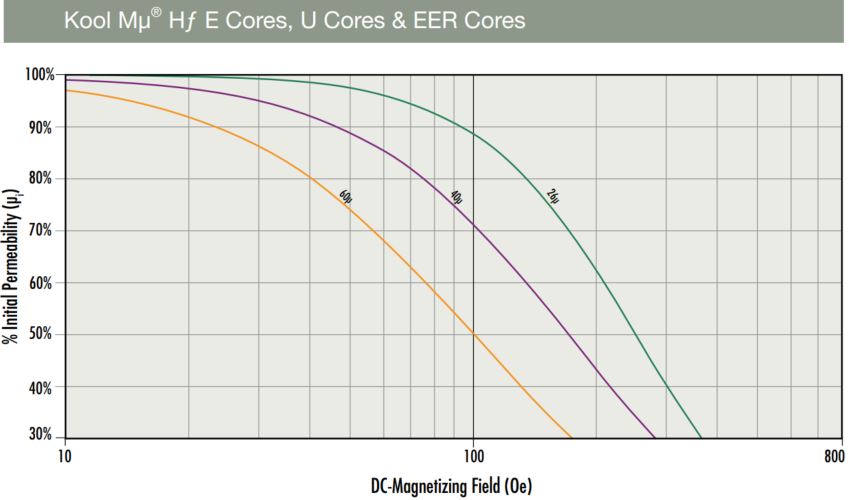

Permeability vs. DC Bias Curves

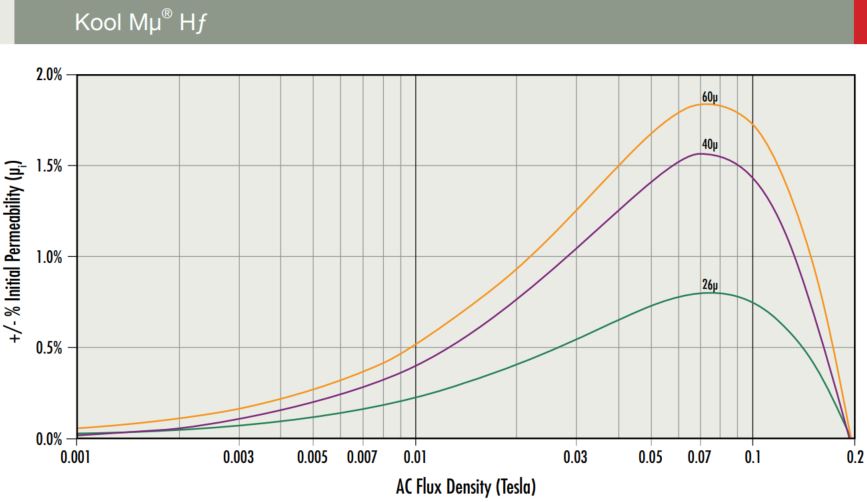

Permeability vs. AC Flux Curves

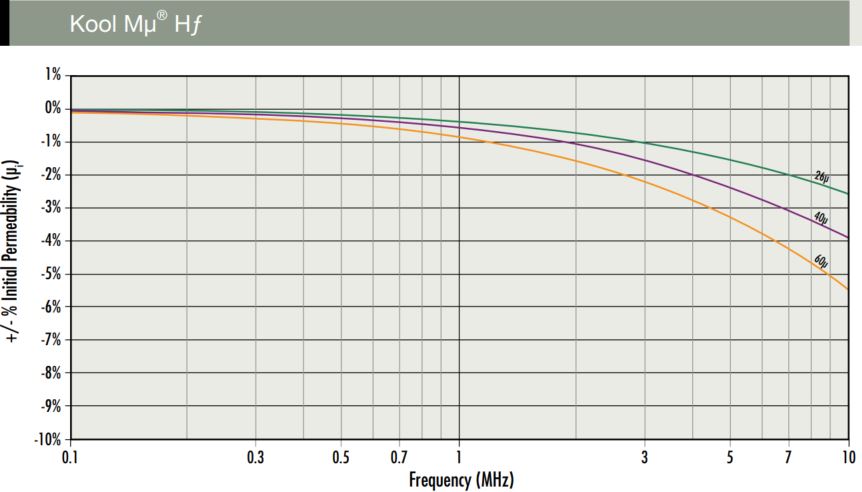

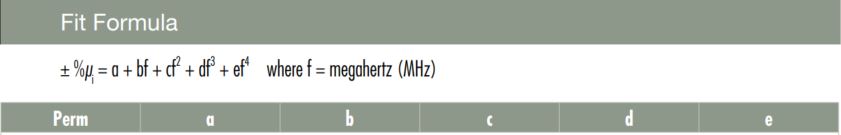

Permeability vs. Frequency Curves

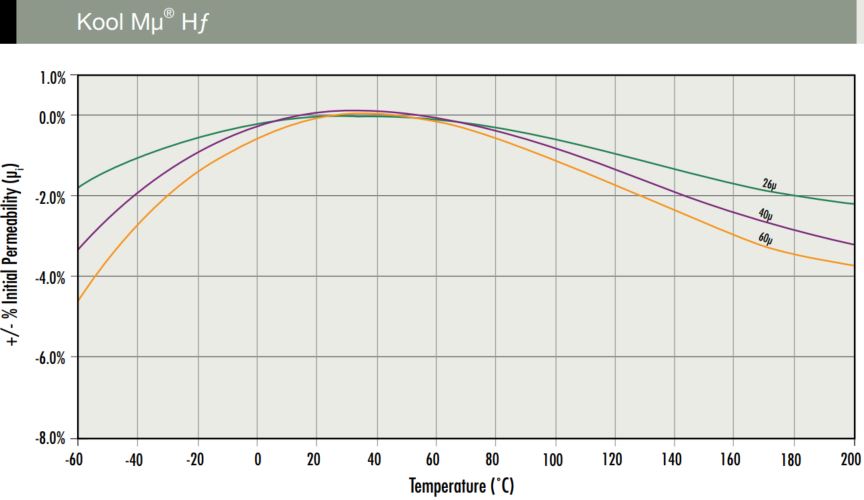

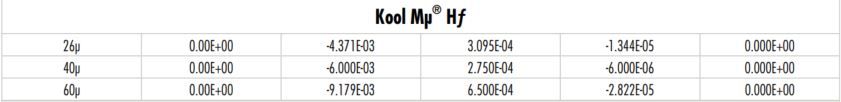

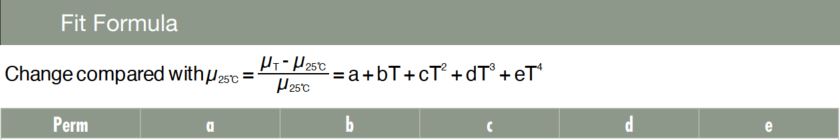

Permeability vs. Temperature Curves

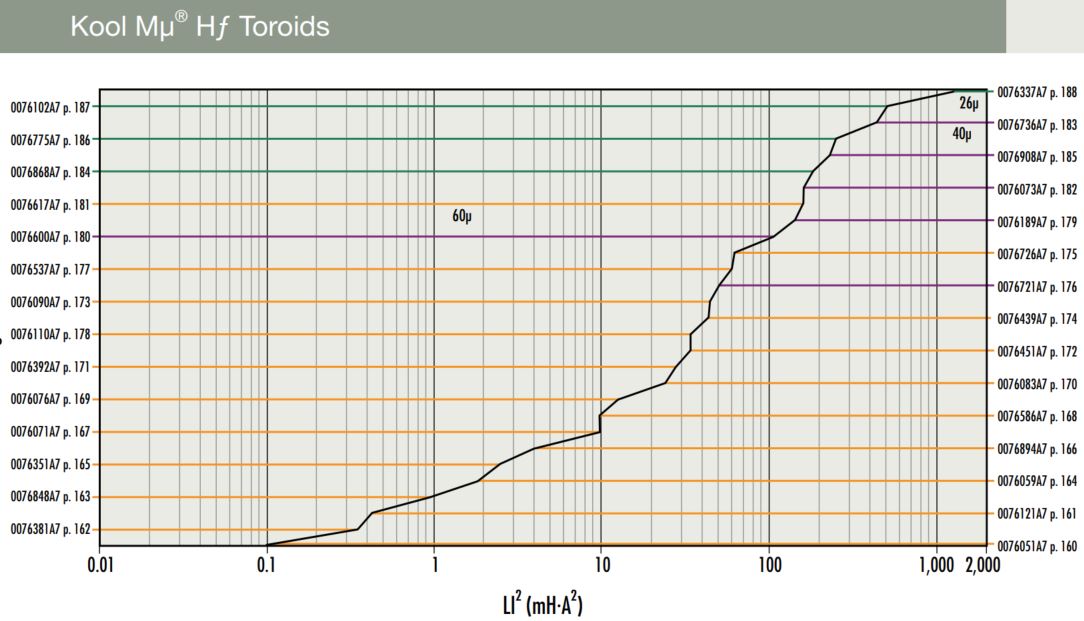

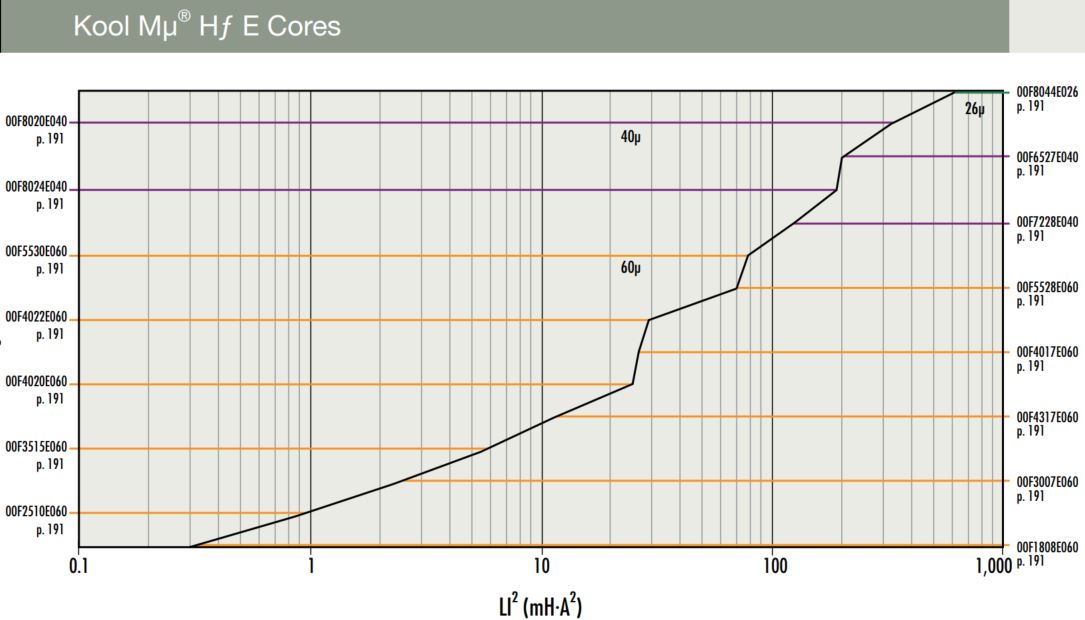

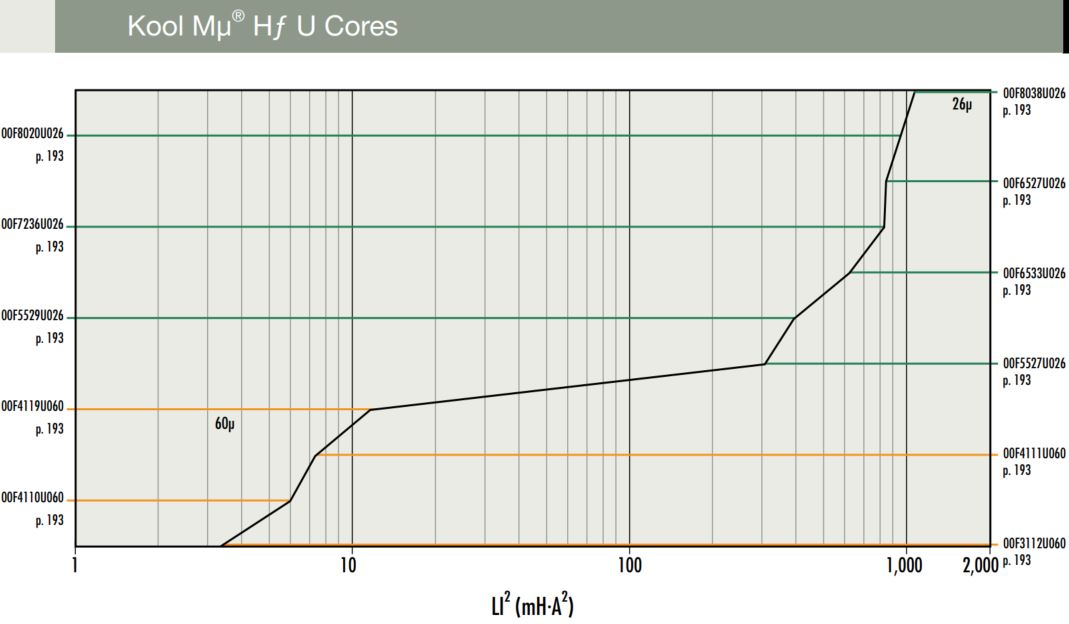

Core Selection Charts
