Kool Mµ^® Material Curves

Jump to:

DC Magnetization Curves
Core Loss Density Curves
Permeability versus Temperature Curves
Permeability versus DC Bias Curves
Permeability versus AC Flux Curves
Permeability versus Frequency Curves
Core Selection Chart

DC Magnetization Curves

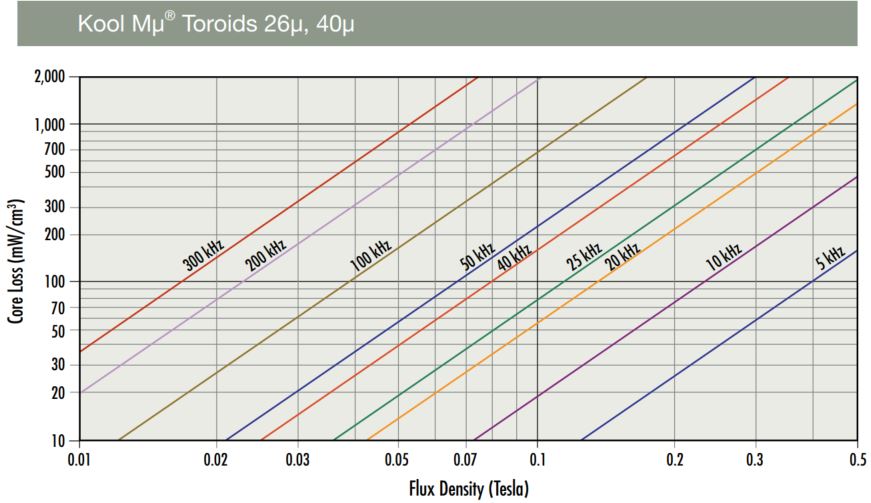

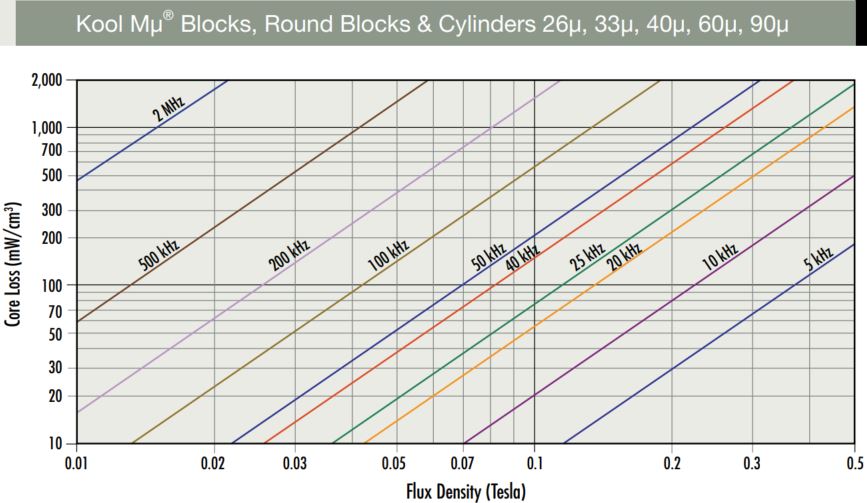

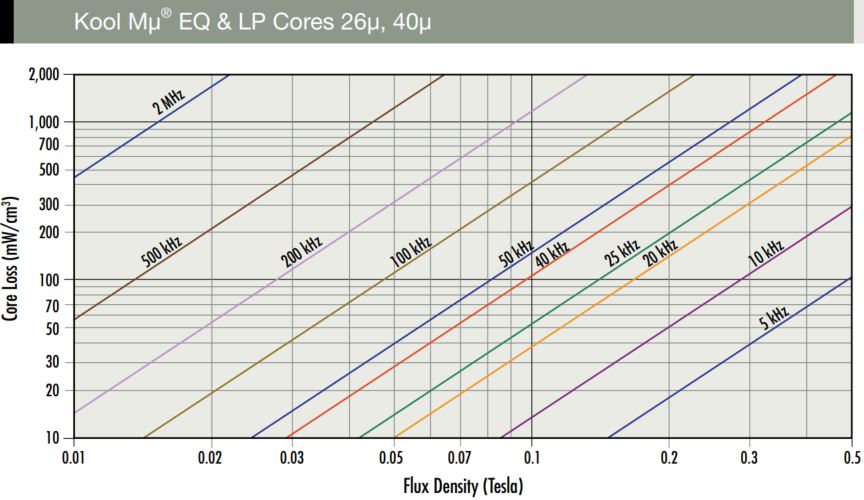

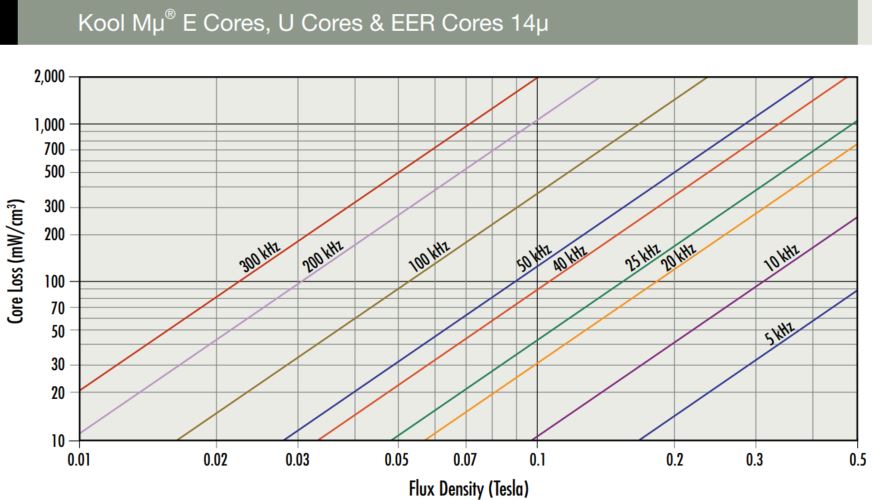

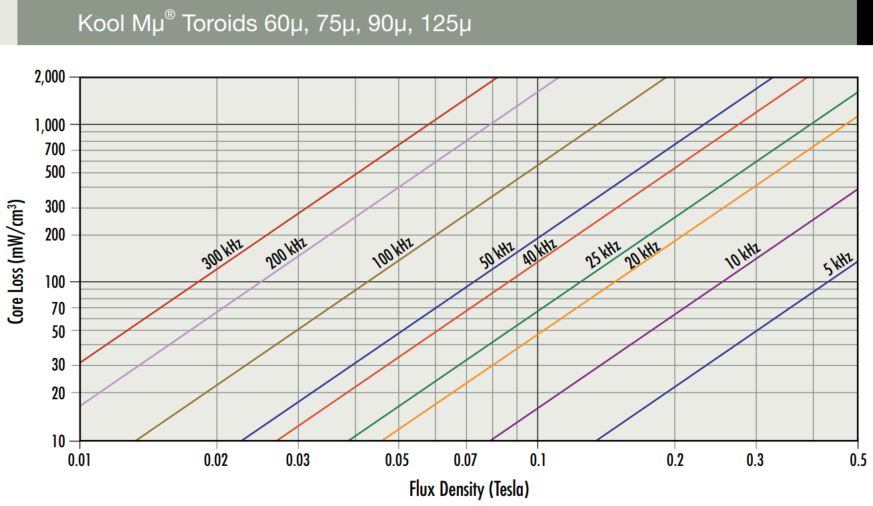

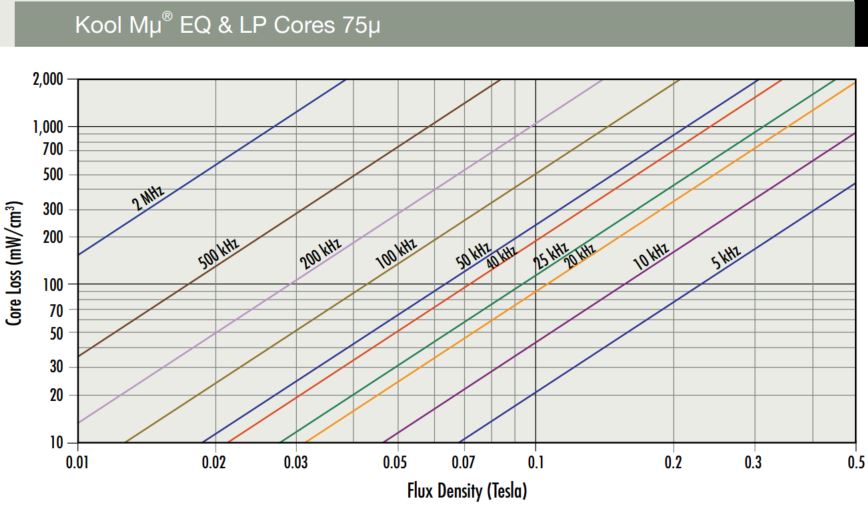

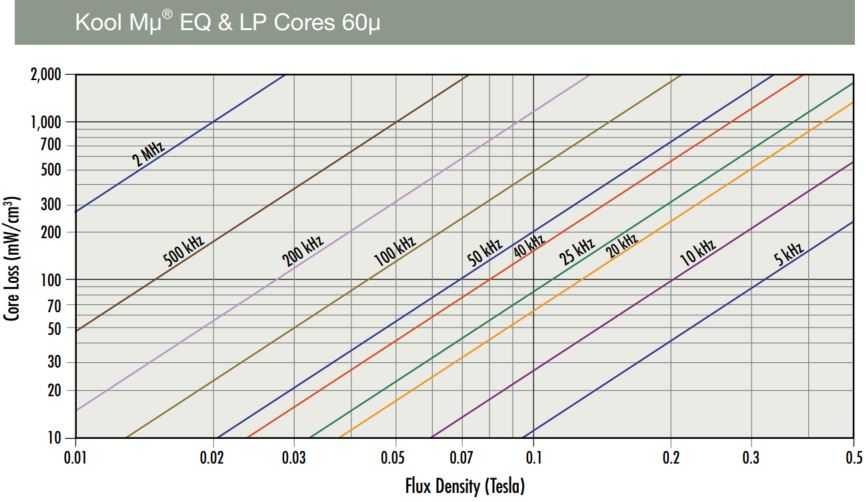

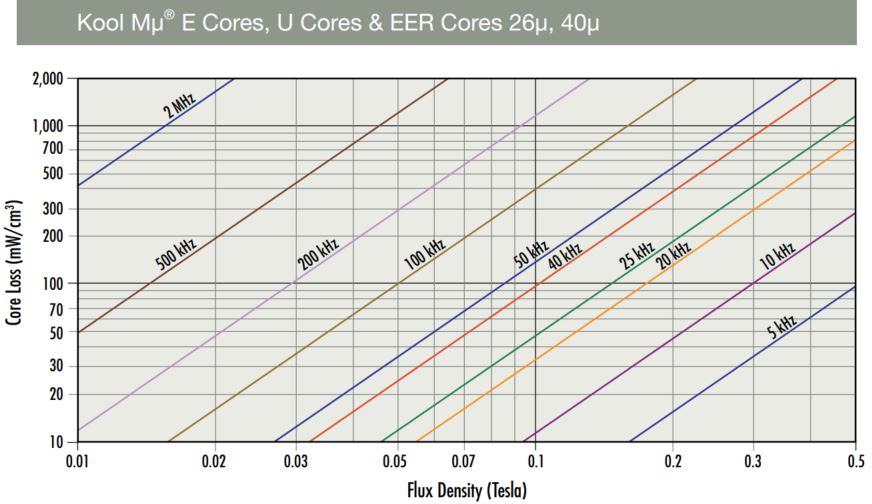

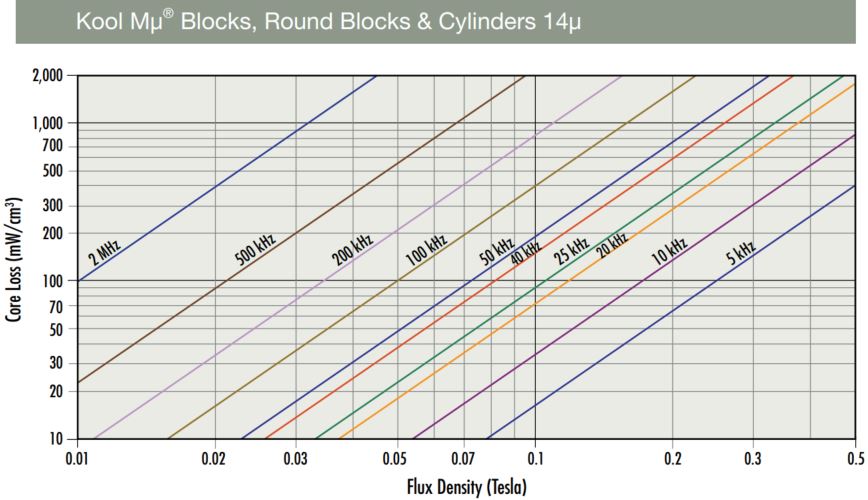

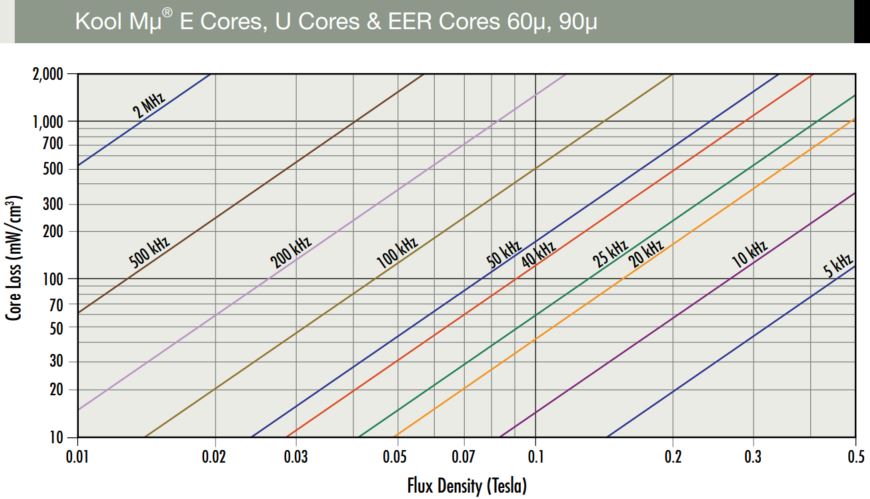

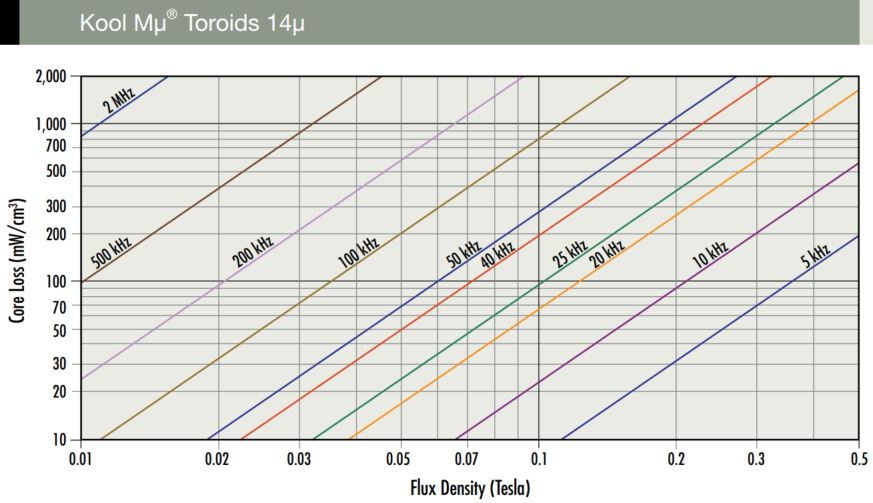

Core Loss Density Curves

Permeability vs. Temperature Curves

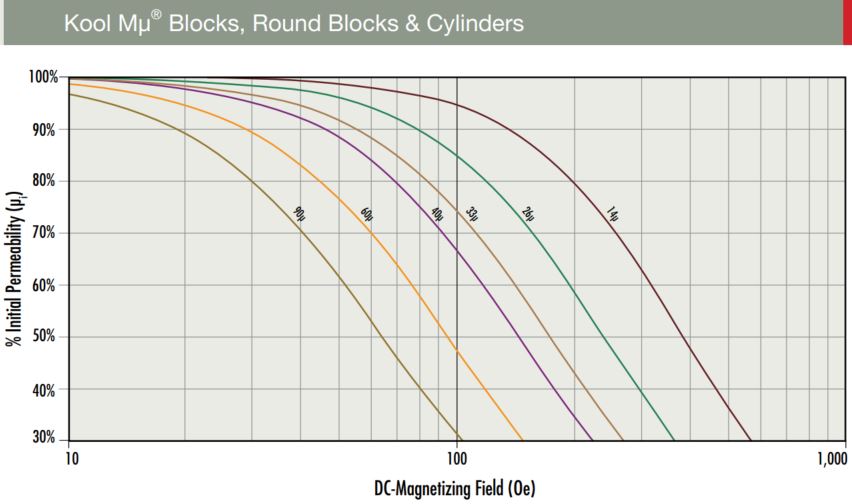

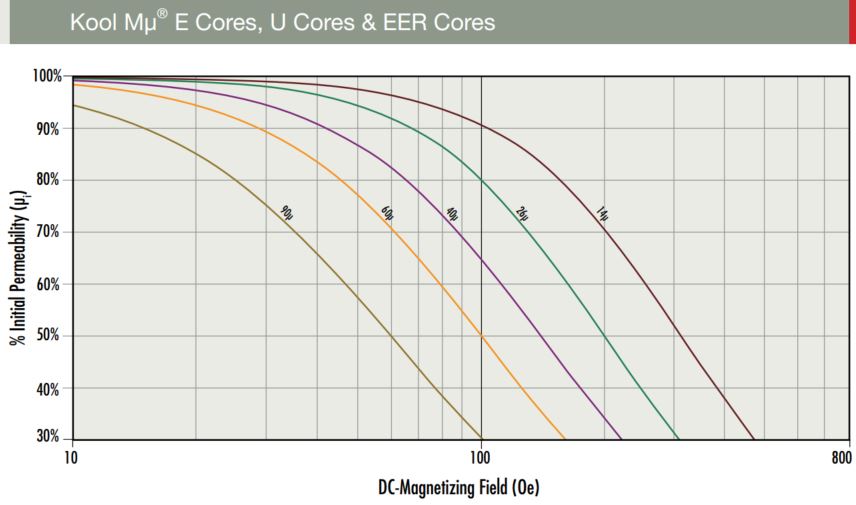

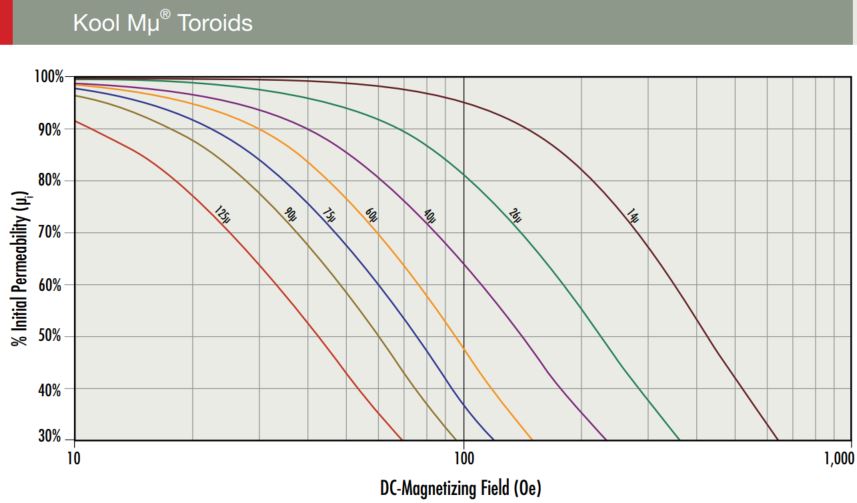

Permeability vs. DC Bias Curves

Permeability vs. AC Flux Curves

Permeability vs. Frequency Curves

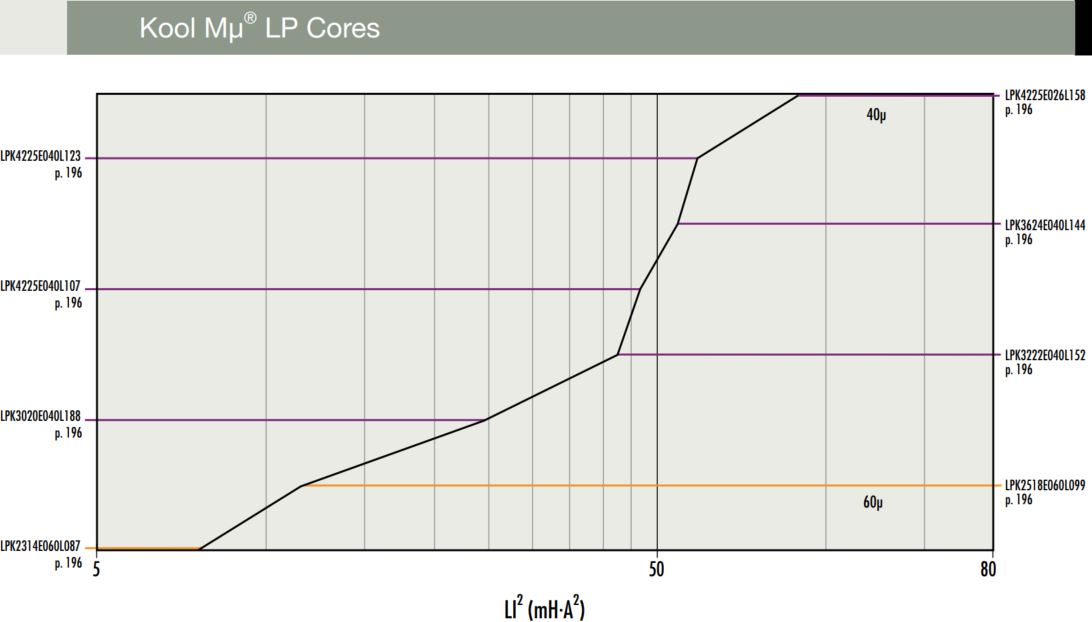

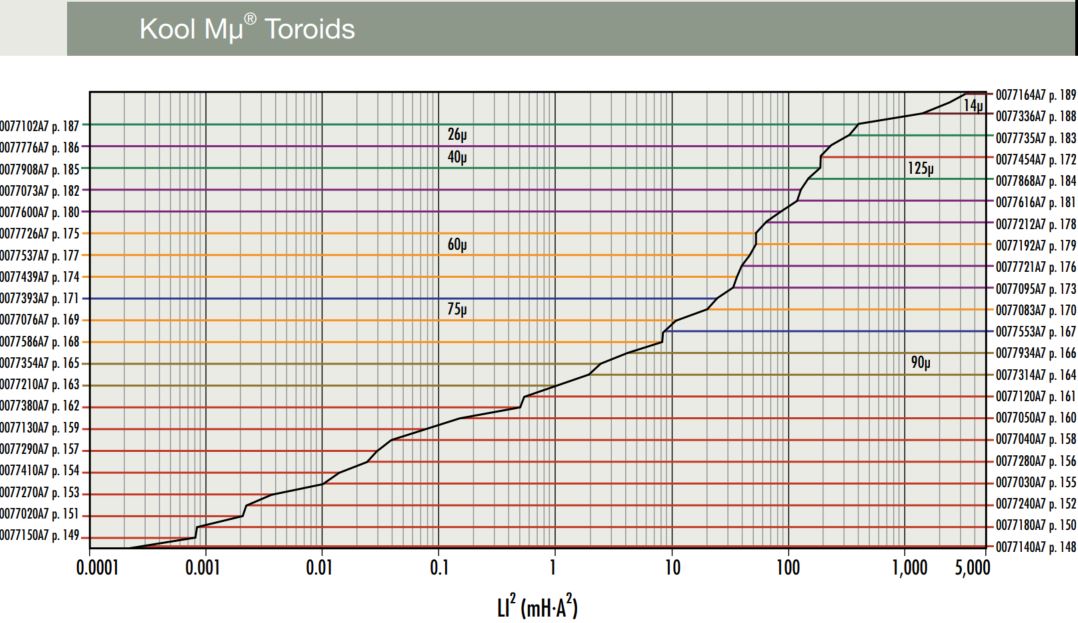

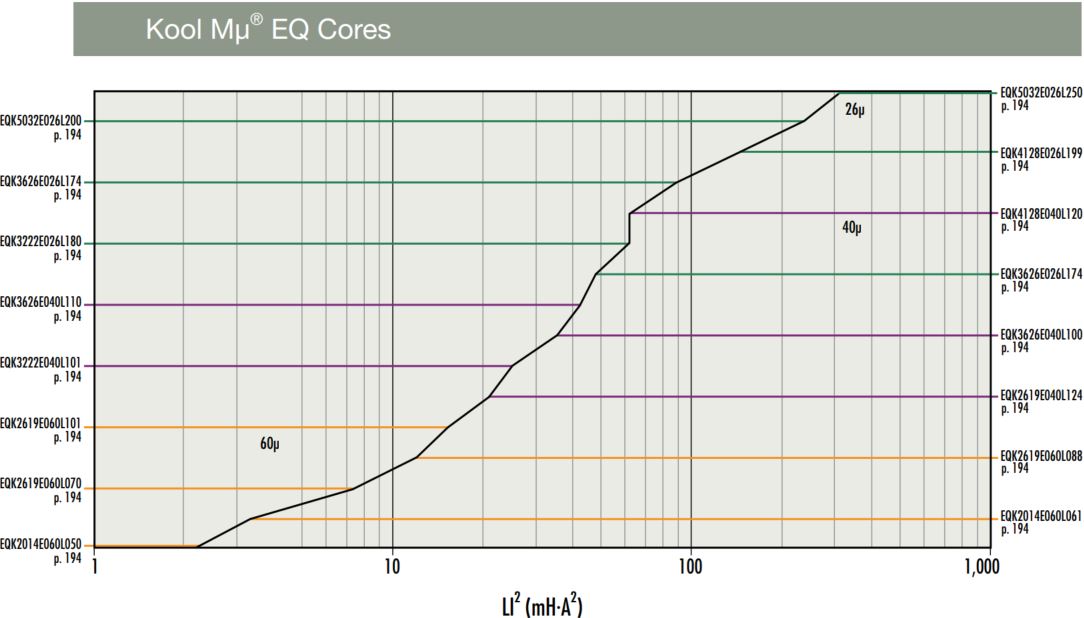

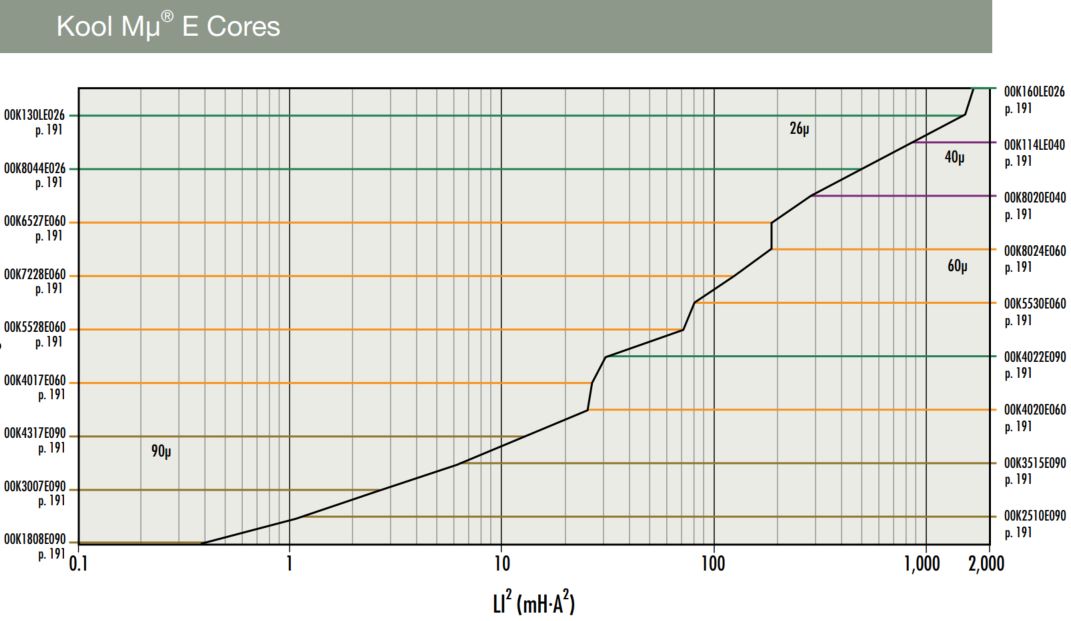

Core Selection Chart
