How to Order Magnetics Tape Wound Cores

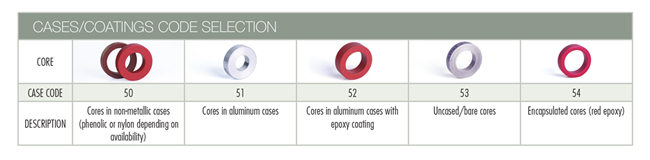

Magnetics tape cores, bobbin cores, amorphous cut cores, and nanocrystalline cores have unique part numbers that provide important information about the characteristics of the cores. A description of part type is provided below. Learn More about Tape Wound Core Cases and Coatings .

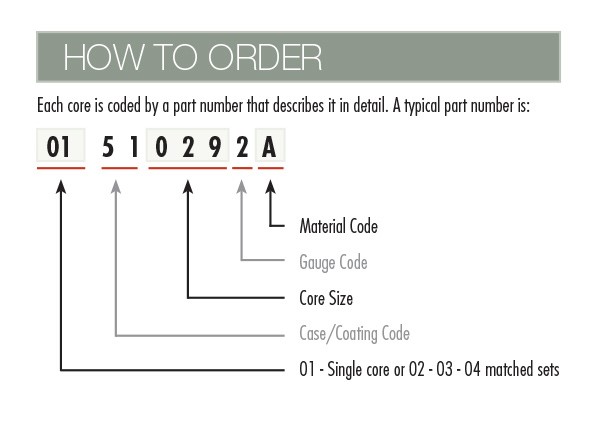

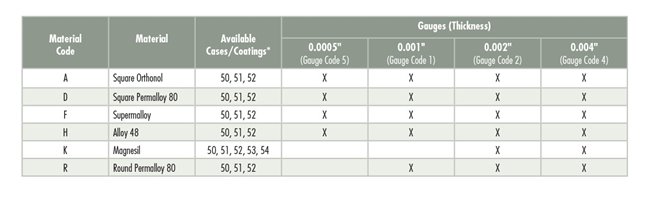

Tape Cores
Click to view larger
Click to view larger

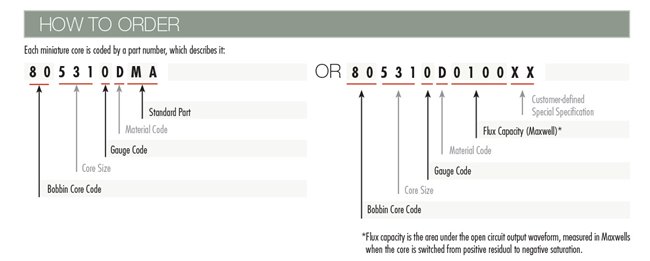

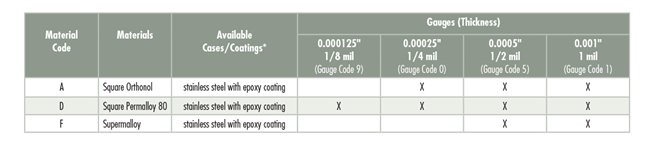

Bobbin Cores
Click to view larger
Click to view larger

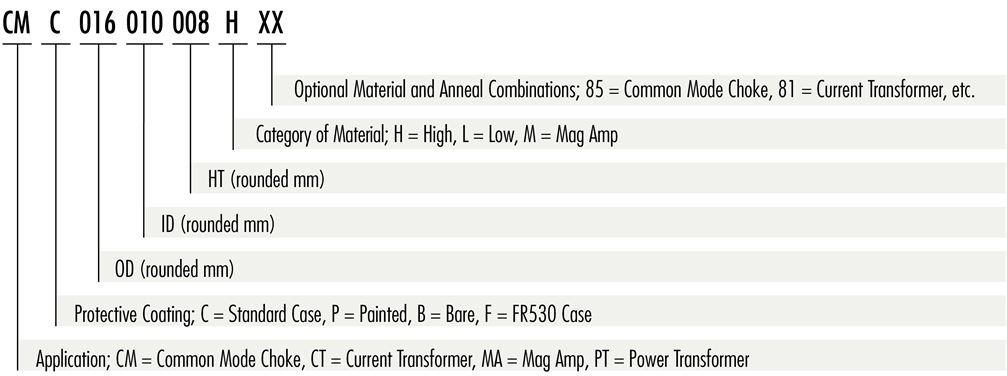

Nanocrystalline Toroidal Cores

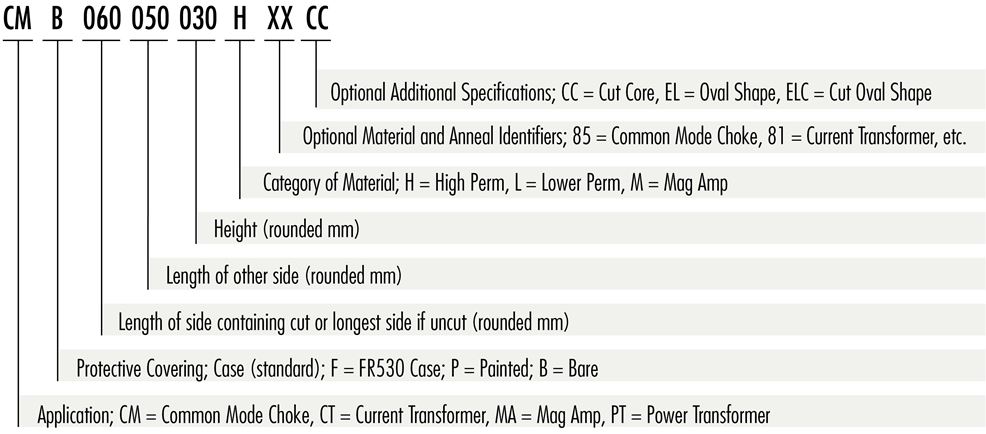

Nanocrystalline Cut Cores

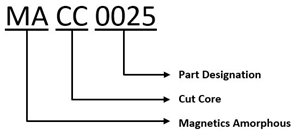

Amorphous Cores
