Kool Mµ^® Ultra Material Curves

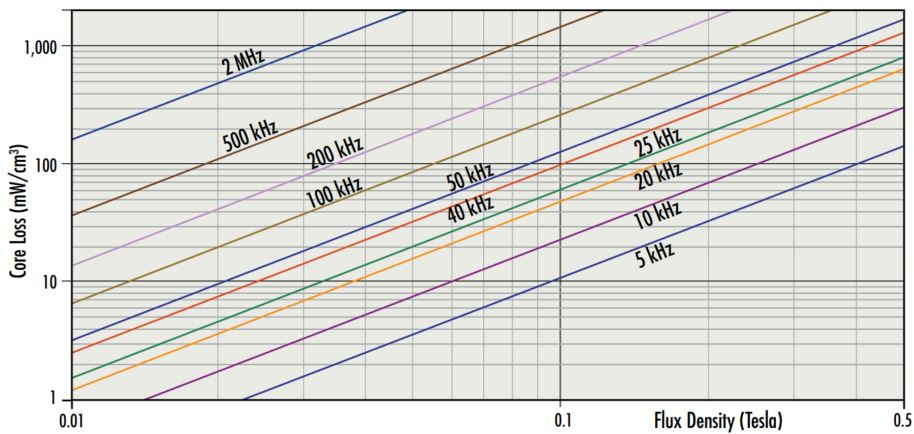

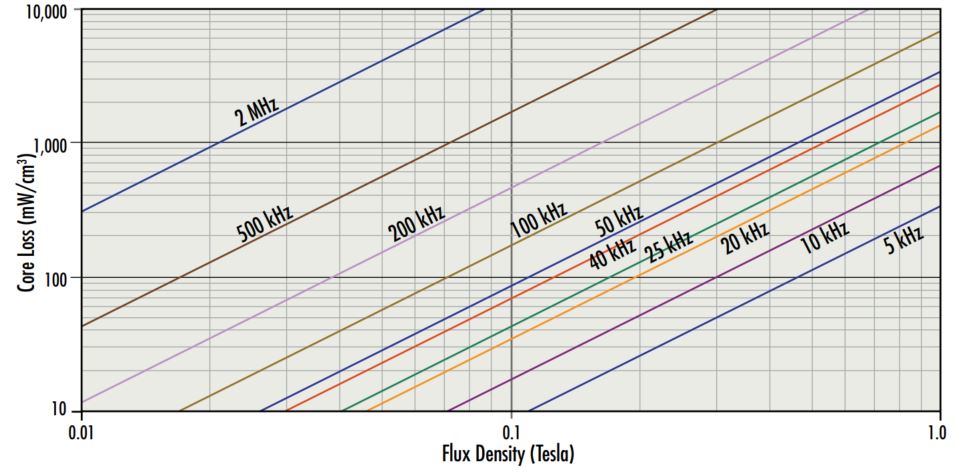

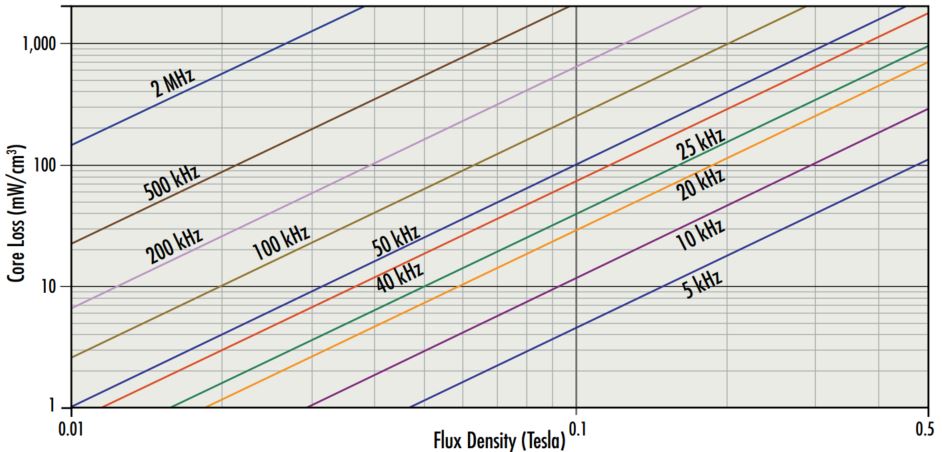

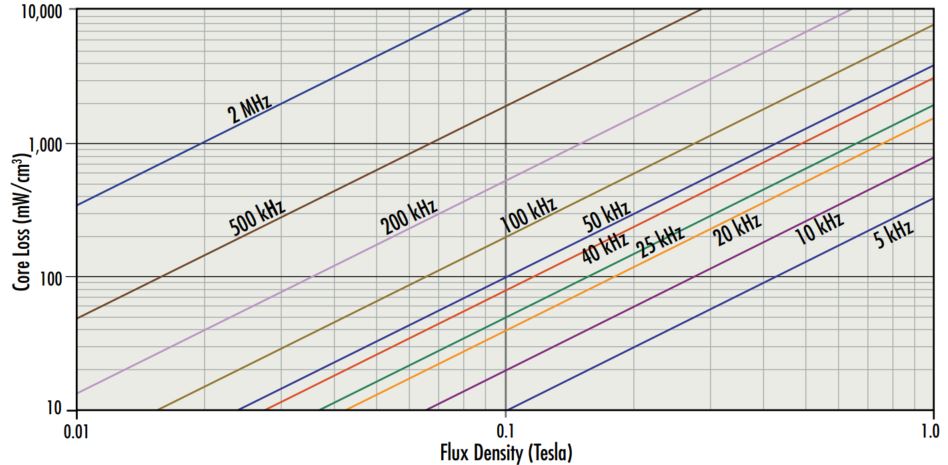

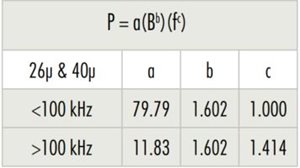

Core Loss Density Curves

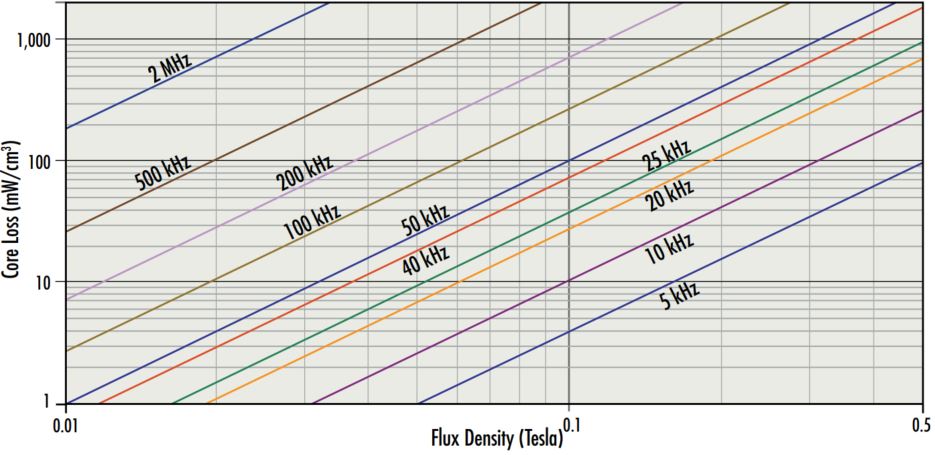

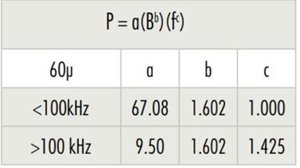

Toroids

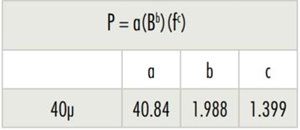

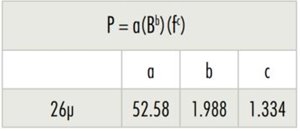

E & U Cores

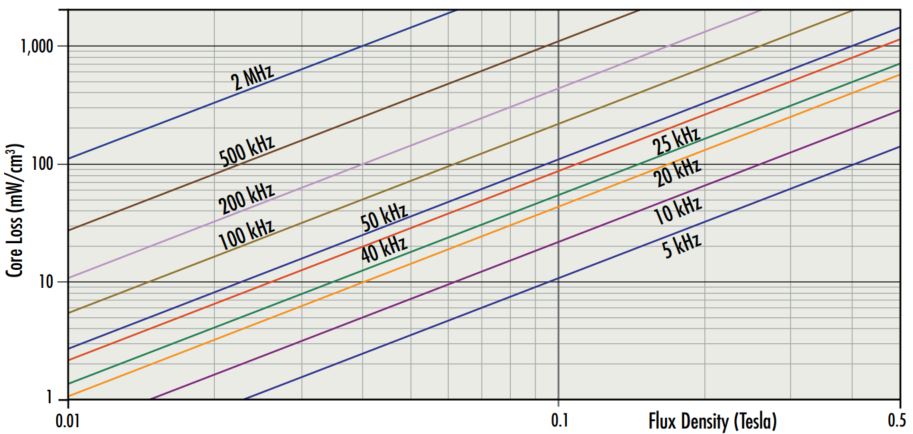

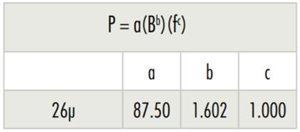

Blocks, Round Blocks, & Cylinders

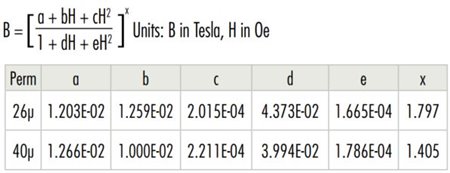

DC Magnetization Curves

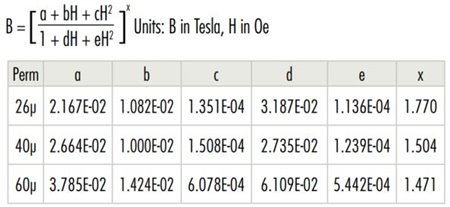

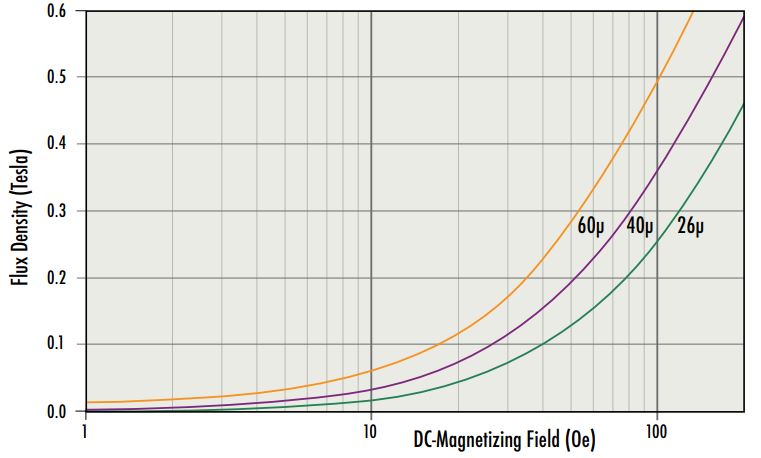

Toroids

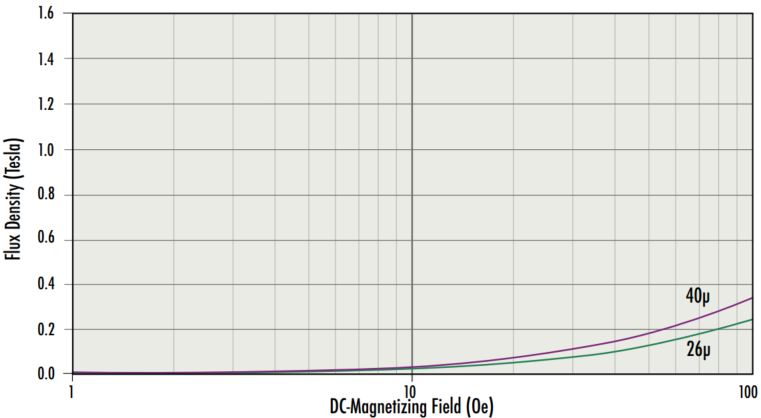

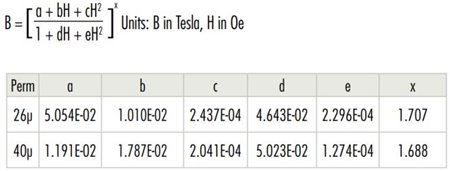

E & U Cores

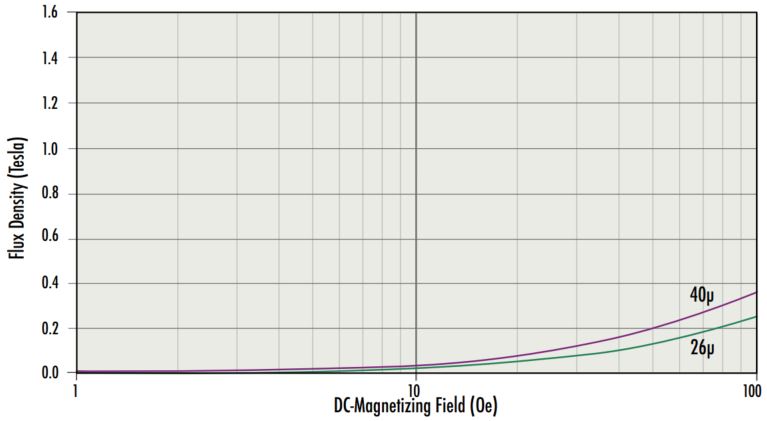

Blocks, Round Blocks, & Cylinders

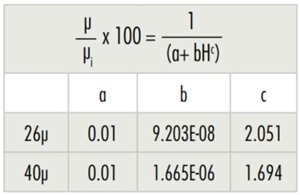

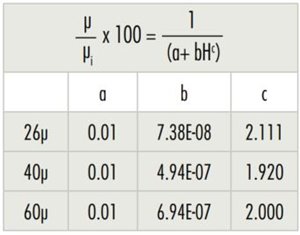

Permeability vs. DC Bias Curves

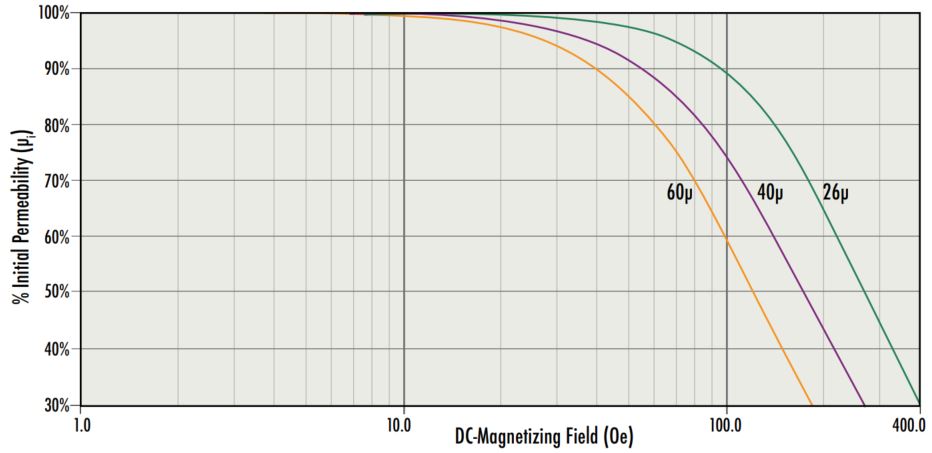

Toroids

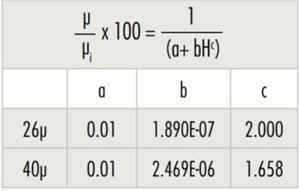

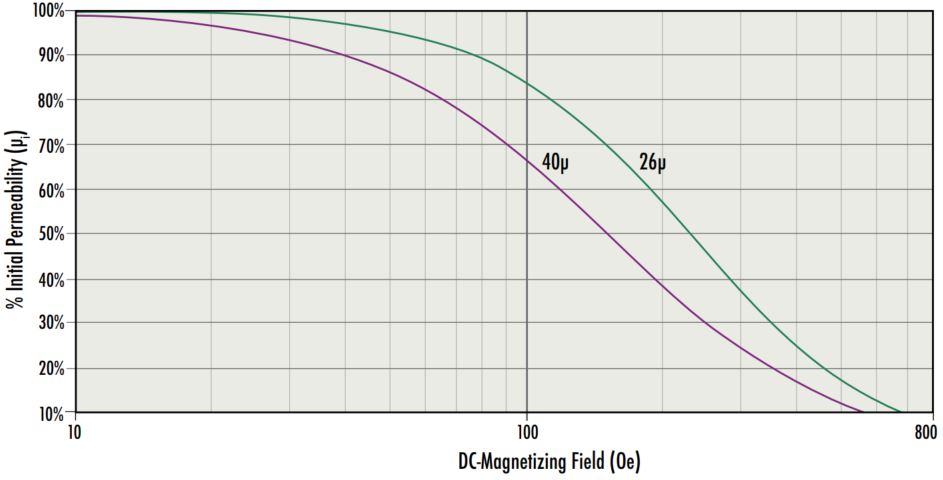

E & U Cores

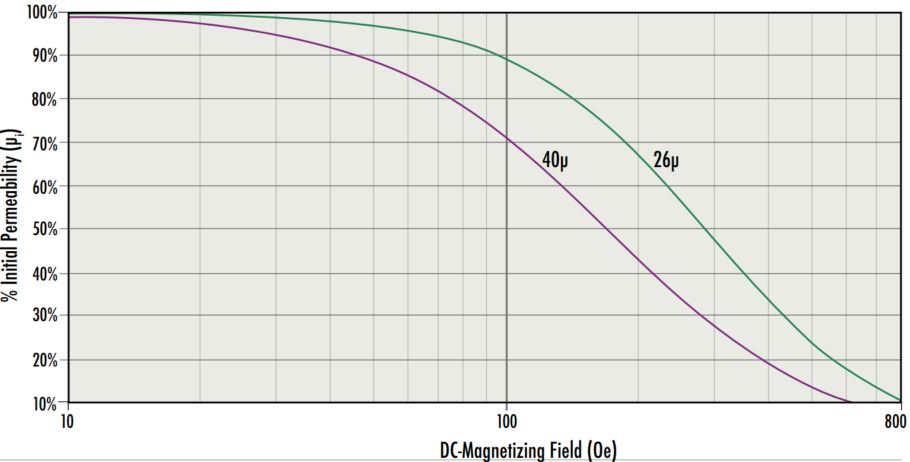

Blocks, Round Blocks, & Cylinders

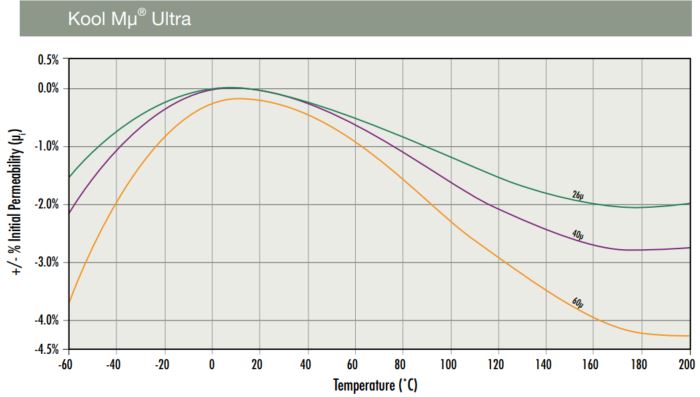

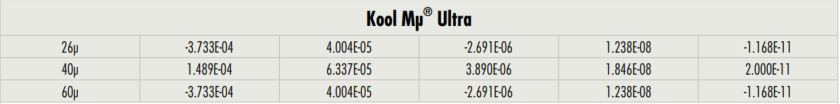

Permeability vs. Temperature

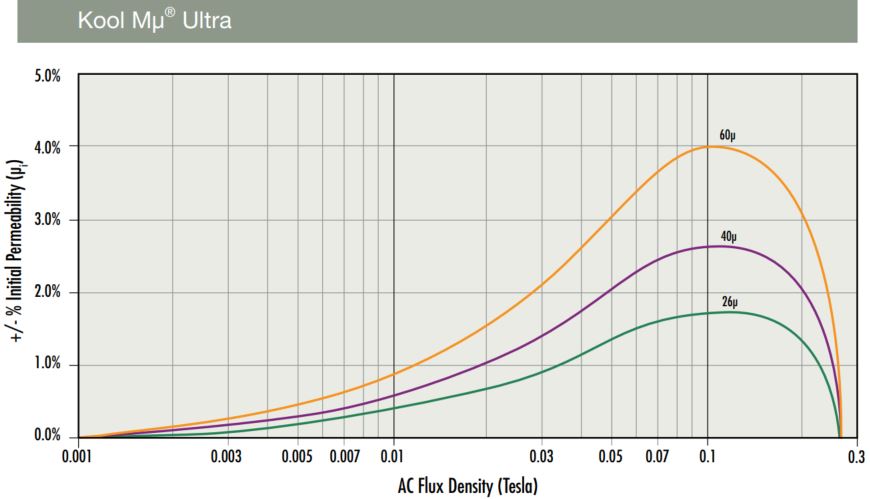

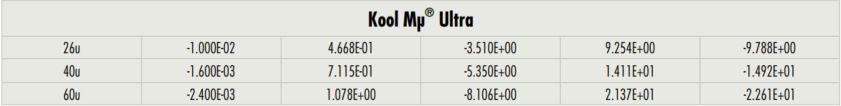

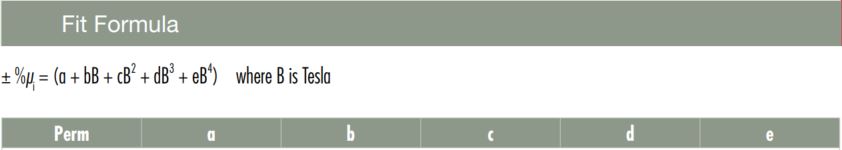

Permeability vs. AC Flux

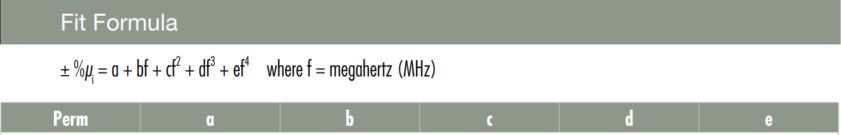

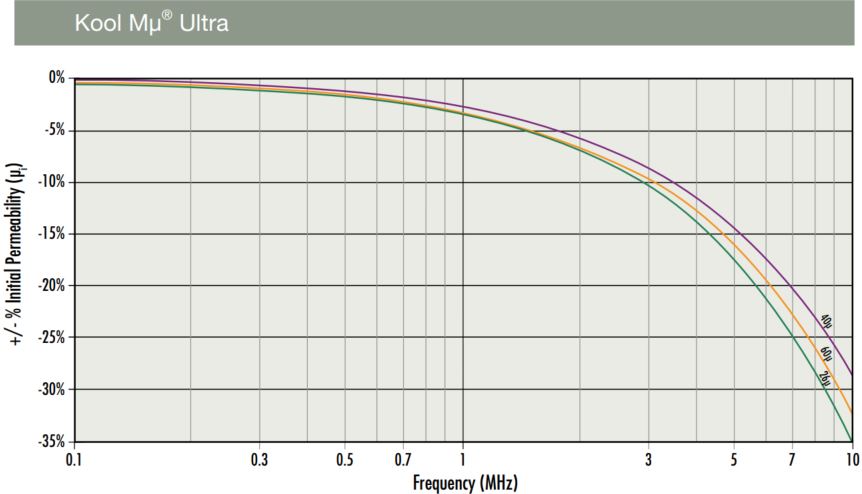

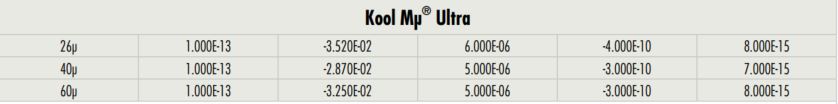

Permeability vs. Frequency

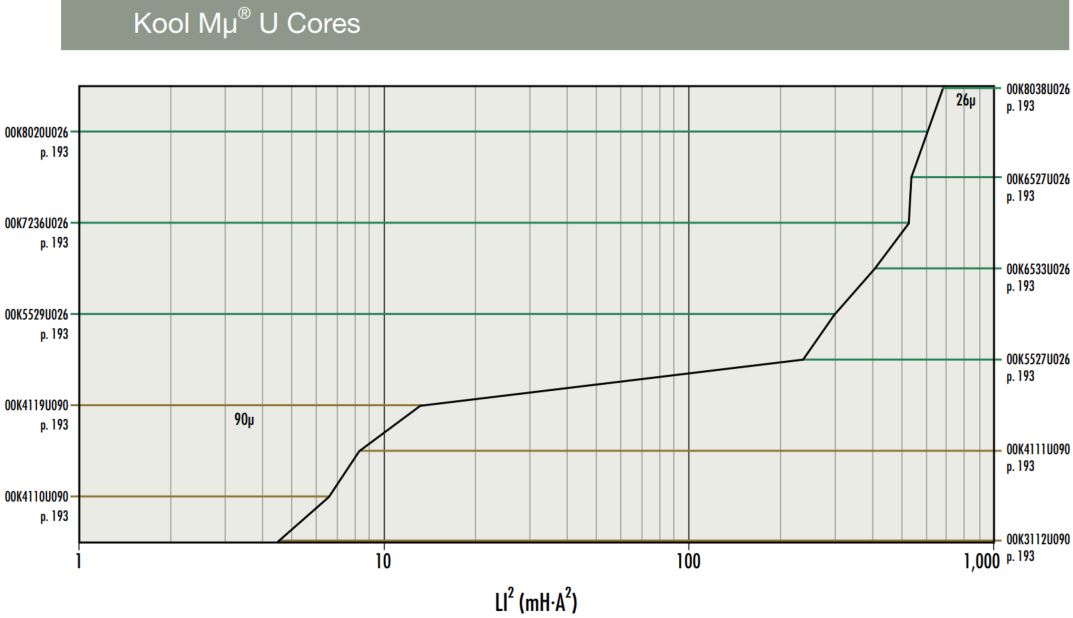

Core Selector Charts
