T Material
T material is a power material for transformers and inductors operating from 20kHz to 750kHz. T material offers stability in both perm and losses over a wide temperature range.
| Initial Perm (10 kHz) | 3,000 ± 25% |
| Saturation Flux Density (5,300 G at 15 Oe, 25°C) | 530 mT, 11.9 A•T/cm |
| Curie Temperature | 220°C |
| Maximum Usable Frequency (50% roll-off) | ≤1.5 MHz |
| Remanence (1,500 G, 25°C) | 150 mT |
| Resistivity | 5 Ω-m |
| Density | 4.8 g/cm3 |

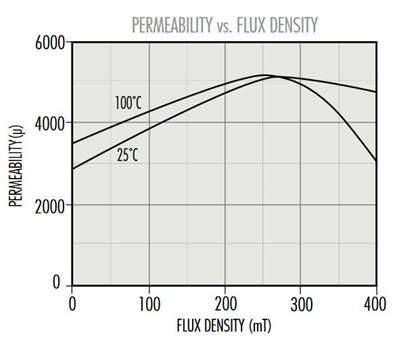

PERMEABILITY vs. FLUX DENSITY

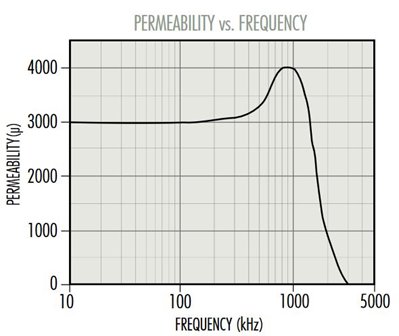

PERMEABILITY vs. FREQUENCY

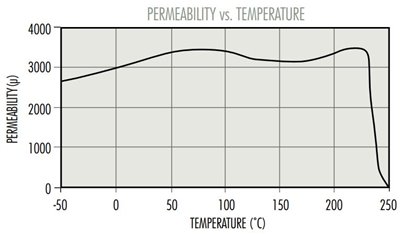

PERMEABILITY vs. TEMPERATURE

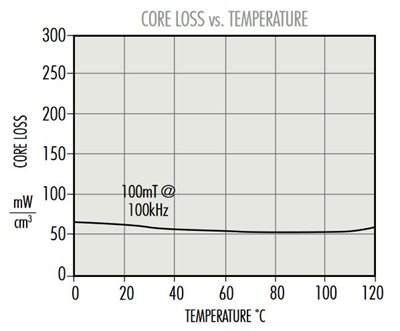

CORE LOSS vs. TEMPERATURE

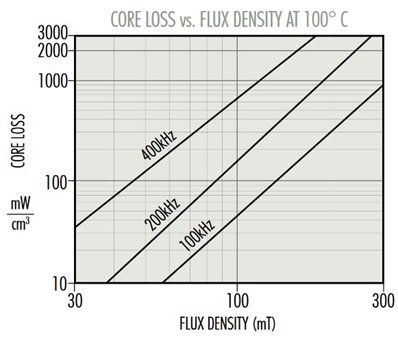

CORE LOSS vs. FLUX DENSITY AT 100°C

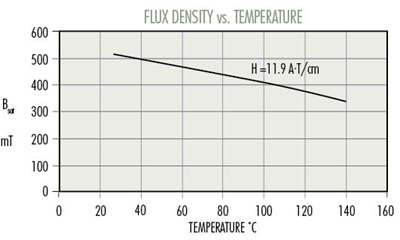

FLUX DENSITY vs. TEMPERATURE

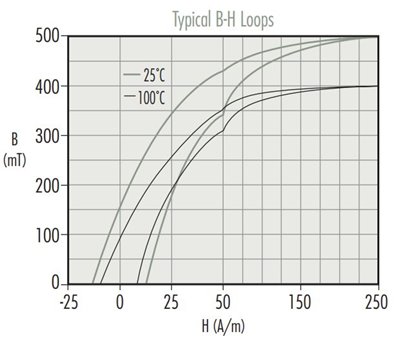

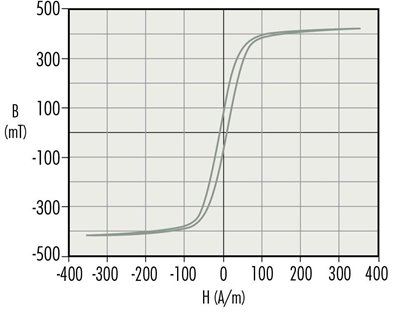

B-H LOOP
