M Material
M material is Magnetics' highest permeability material at 15,000µ used for EMI/RFI suppression filters, common mode chokes, signal processing, and broadband transformers. Available in toroids.
For more information on Magnetics' M Material ferrite toroids, view our technical bulletin.
| Initial Perm (10 kHz) | 15,000 ± 30% |
| Saturation Flux Density (4,700 G at 15 Oe, 25°C) | 470 mT, 11.9 A•T/cm |
| Curie Temperature | 130°C |
| Maximum Usable Frequency (50% roll-off) | ≤0.12 MHz |
| Relative Loss Factor (tan δ/µiac) X10-6, 25°C | ≤10 (10 kHz) |
| Remanence (800 G, 25°C) | 80 mT |
| Resistivity | 0.5 Ω-m |
| Density | 5 g/cm3 |

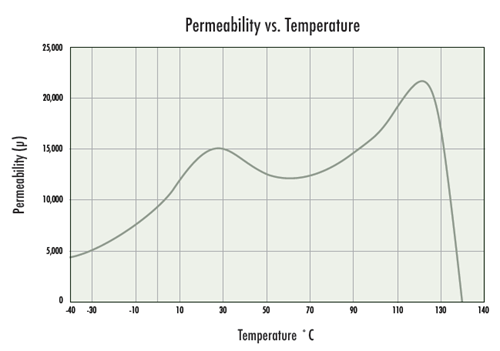

PERMEABILITY vs. TEMPERATURE

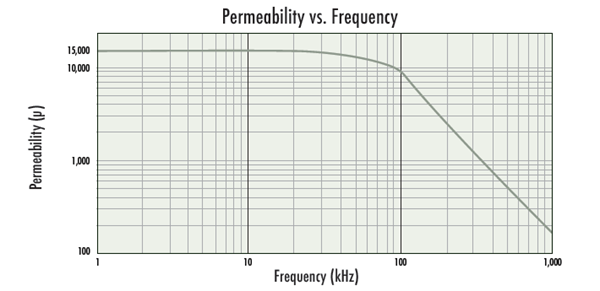

PERMEABILITY vs. FREQUENCY

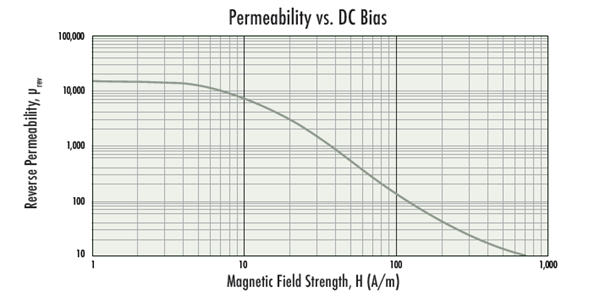

PERMEABILITY vs. DC BIAS

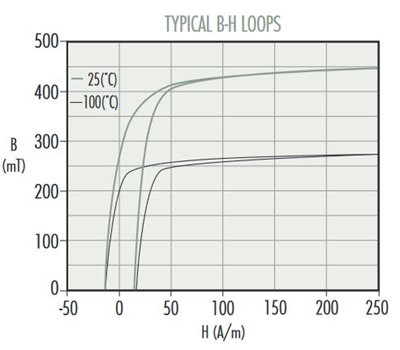

B-H LOOP
