L Material
L material is a high-frequency high-temperature power material. L material is optimized for transformers and Inductors from 500 kHz – 3 MHz. Core losses are minimized between 70 – 100°C.
| Initial Perm (10 kHz) | 750 ± 25% |
| Saturation Flux Density (4,200 G at 15 Oe,25°C) | 520 mT, 12 A•T/cm |
| Curie Temperature | 280°C |
| Maximum Usable Frequency (50% roll-off) | ±3 MHz |
| Remanence (1,500 G, 25°C) | 150 mT |
| Resistivity | 10 Ω-m |
| Density | 4.8 g/cm3 |

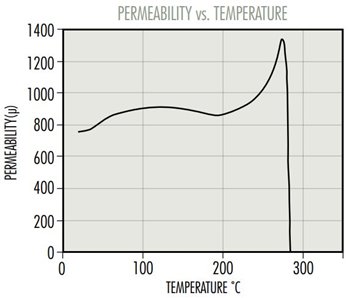

PERMEABILITY vs. TEMPERATURE

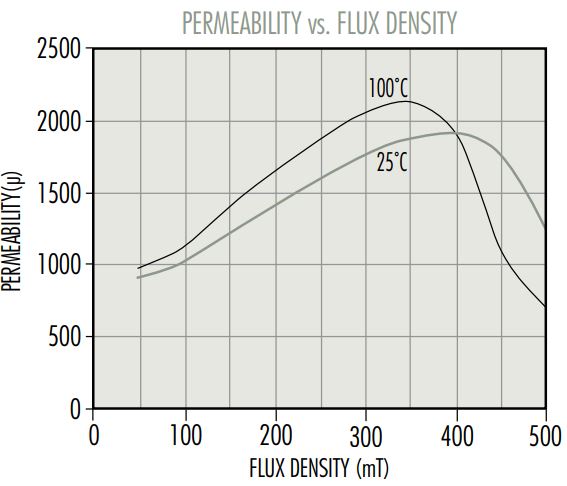

PERMEABILITY vs. FLUX DENSITY

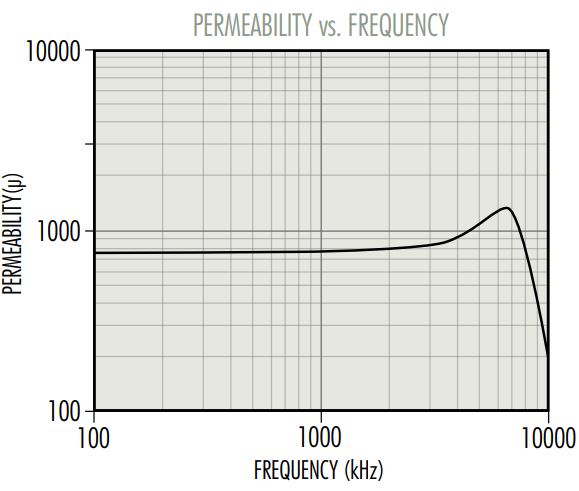

PERMEABILITY vs. FREQUENCY

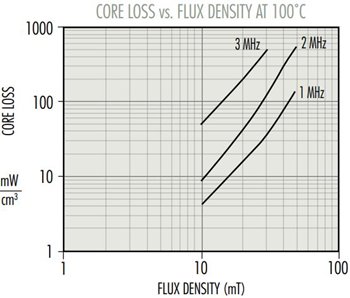

CORE LOSS vs. FLUX DENSITY AT 100°C

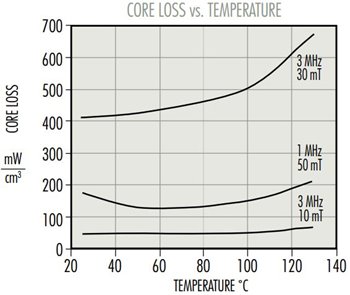

CORE LOSS vs. TEMPERATURE

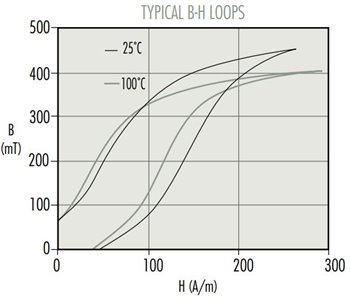

B-H LOOP
