F Material
F material is a medium frequency general-purpose power transformer, inductor and filter material. Slightly higher in perm than P or R Material. Engineered for lowest losses at 60°C.
| Initial Perm (10 kHz) | 3,000 ± 20% |
| Saturation Flux Density (4,700 G at 15 Oe, 25°C) | 470 mT, 11.9 A•T/cm |
| Curie Temperature | 210°C |
| Maximum Usable Frequency (50% roll-off) | ≤1.5 MHz |
| Remanence (1,500 G, 25°C) | 150 mT |
| Resistivity | 5 Ω-m |
| Density | 4.8 g/cm3 |

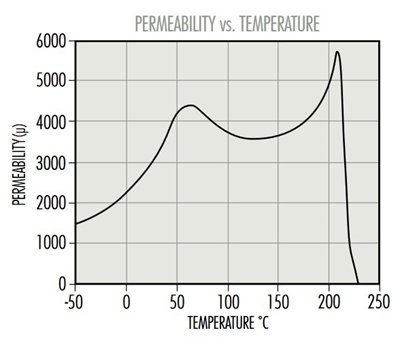

PERMEABILITY vs. TEMPERATURE

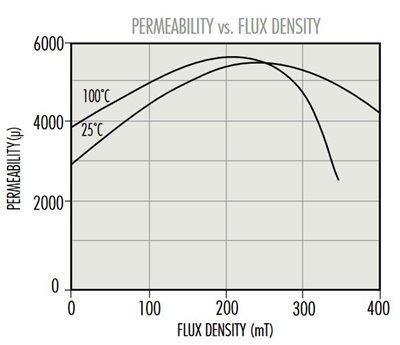

PERMEABILITY vs. FLUX DENSITY

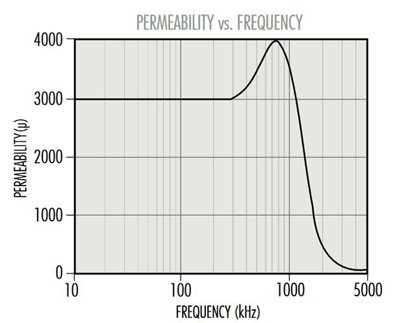

PERMEABILITY vs. FREQUENCY
PERMEABILITY vs DC BIAS

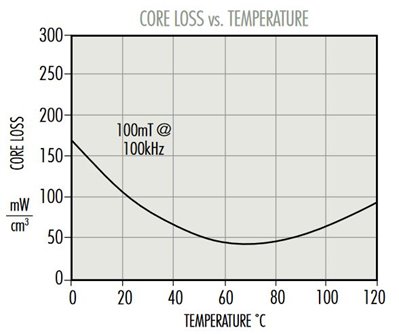

CORE LOSS vs. TEMPERATURE

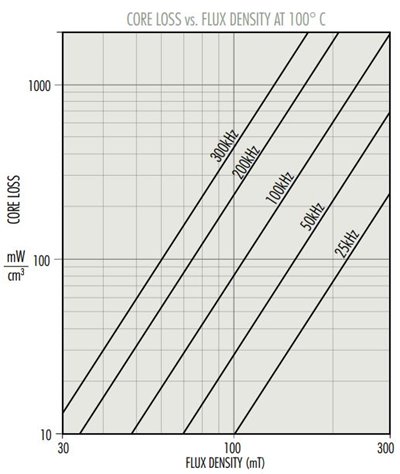

CORE LOSS vs. FLUX DENSITY AT 100°C

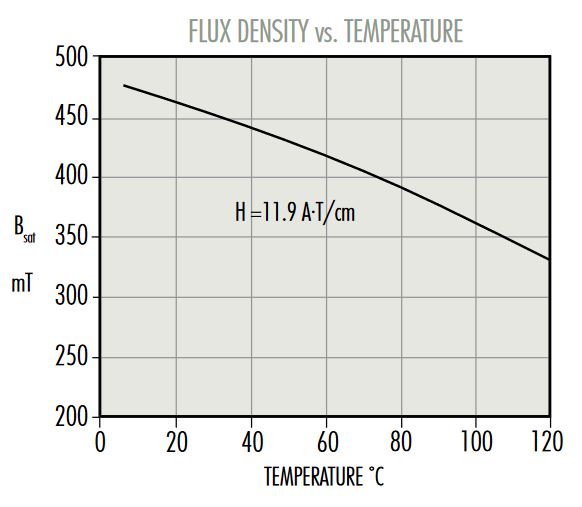

FLUX DENSITY vs. TEMPERATURE

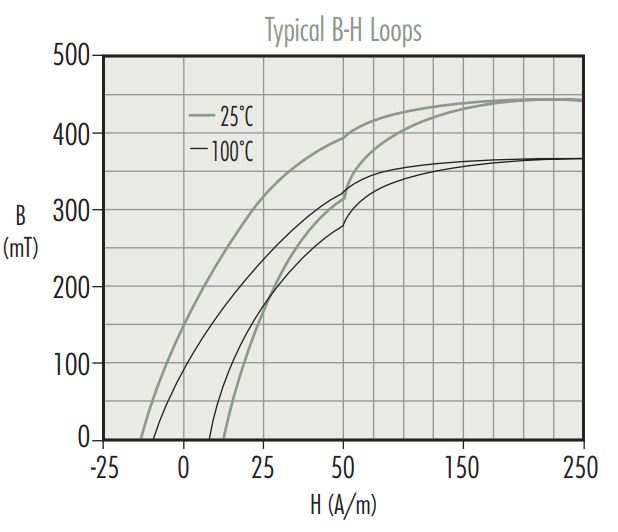

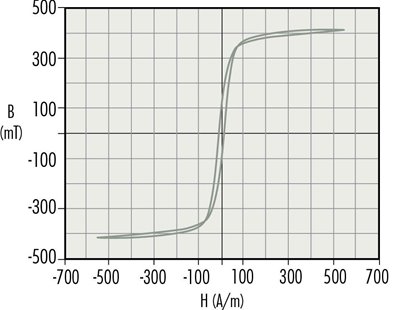

B-H LOOP
