E Material
E material works well for Telecom Filters, Wideband, Matching and Pulse transformer applications, and High Q inductors.
| Initial Perm (10 kHz) | 2,000 ± 25% |
| Saturation Flux Density (3,600 G at 15 Oe, 25°C) | 360 mT, 11.9 A•T/cm |
| Curie Temperature | 160°C |
| Maximum Usable Frequency (50% roll-off) | <3 MHz |
| Relative Loss Factor (tan δ/µiac) X10-6, 25°C | 3@100 kHz max |
| Remanence (700 G, 25°C) | 70 mT |
| Resistivity | 2 Ω-m |
| Density | 4.7 g/cm3 |

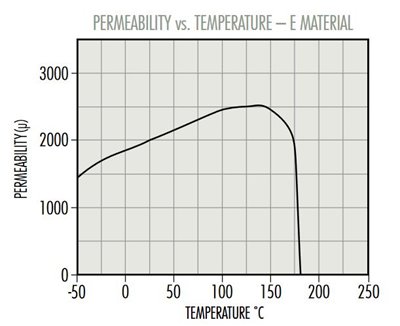

PERMEABILITY vs. TEMPERATURE

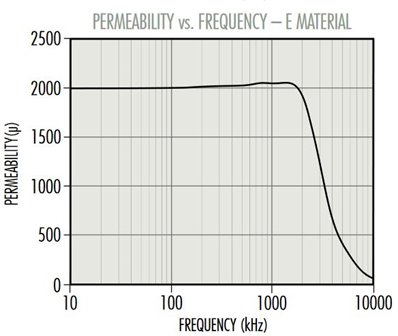

PERMEABILITY vs. FREQUENCY

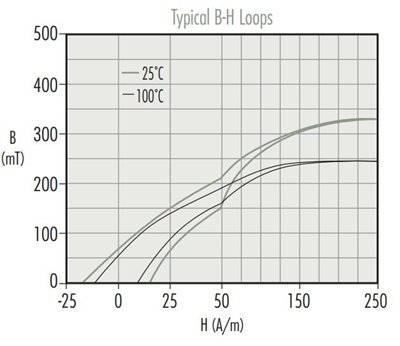

B-H LOOP
