C Material
C material works well for Telecom Filters, Wideband, Matching and Pulse transformer applications, and High Q inductors.
| Initial Perm (10 kHz) | 900 ± 25% |
| Saturation Flux Density (3,800 G at 15 Oe, 25°C) | 380 mT, 11.9 A•T/cm |
| Curie Temperature | 200°C |
| Maximum Usable Frequency (50% roll-off) | <8 MHz |
| Relative Loss Factor (tan δ/µiac) X10-6, 25°C | 10@300 kHz max |
| Remanence (1,500 G, 25°C) | 150 mT |
| Resistivity | 2 Ω-m |
| Density | 4.9 g/cm3 |

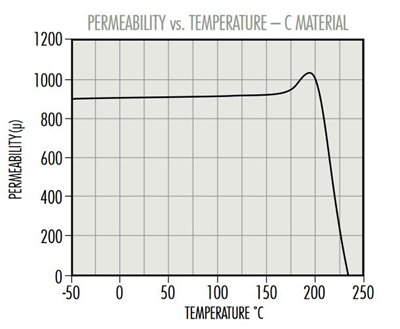

PERMEABILITY vs. TEMPERATURE

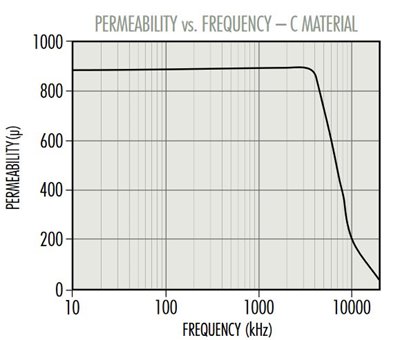

PERMEABILITY vs. FREQUENCY

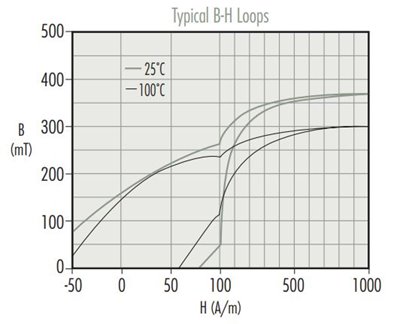

B-H LOOP
